Data Link Connector 3
›
Multiplex Communication System - AVC-LAN
Multiplex Communication System - AVC-LAN

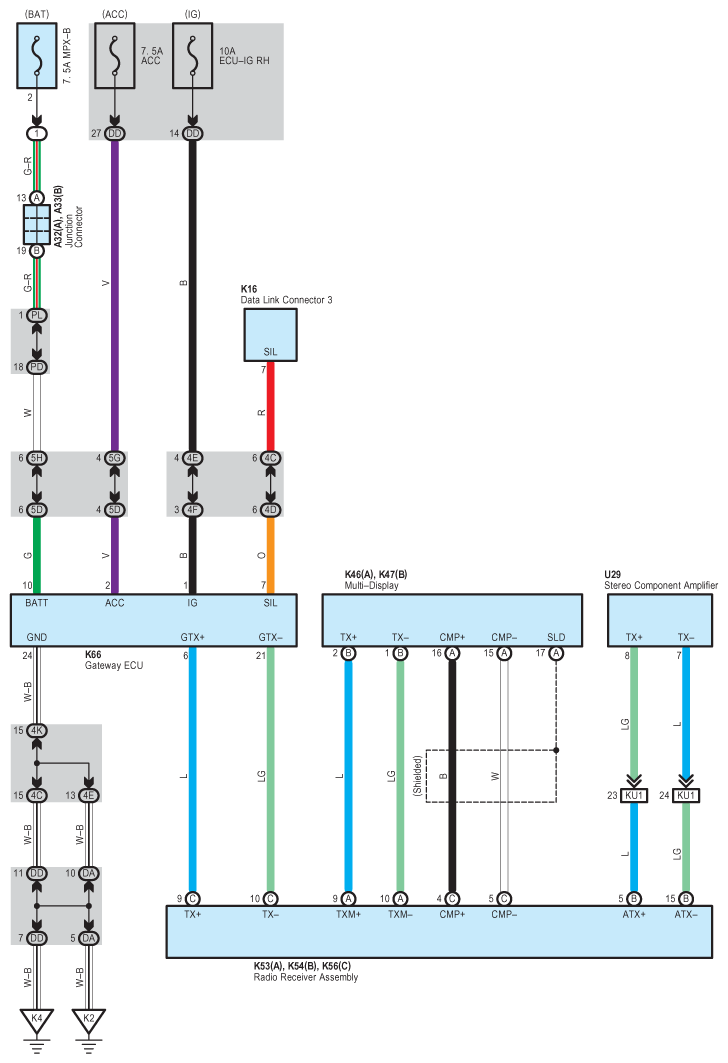

Fig 1: Multiplex Communication System - AVC-LAN - Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
