Shift Lever: Reassembly

INSTALL TRANSMISSION CONTROL SWITCH
1. Install the transmission control switch to the shift lever guide housing.
  NOTE: Securely engage the claws.

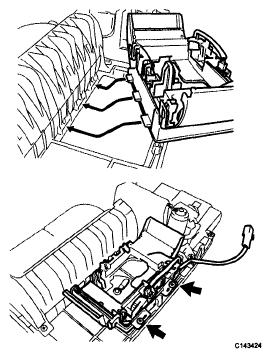

  Fig 1: Identifying Transmission Control Switch
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SHIFT LOCK CONTROL ECU SUB-ASSEMBLY
1. Apply MP grease to the hatched area of the shift lever guide housing as indicated in the illustration.

  Fig 2: Identifying MP Grease Applying Area
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the shift lock control ECU sub-assembly with the 2 screws.

  Fig 3: Locating Shift Lock Control ECU Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the shift lever guide housing with the shift lever lock pin and a new shift lever nut.
  NOTE:
  - Install the shift lever nut and lock pin after first engaging the 2 claws.
  - Securely engage the claws.

    Fig 4: Identifying Shift Lever Nut And Lock Pin
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Connect the transmission control switch connector to the floor shift assembly.

  Fig 5: Locating Shift Lock Control ECU Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL POSITION INDICATOR SLIDE COVER
1. Install position indicator slide cover No. 2 to the position indicator slide cover.
2. Install the position indicator slide cover to the position indicator housing.

  Fig 6: Installing Position Indicator Slide Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL POSITION INDICATOR LENS
1. Install the position indicator lens to the position indicator housing lower.
  NOTE: Securely engage the claws.

  Fig 7: Identifying Position Indicator Lens
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SHIFT LEVER CAP
1. Install the shift lever cap to the position indicator housing.
INSTALL POSITION INDICATOR HOUSING
1. Install the position indicator housing upper to the position indicator housing lower.
  NOTE: Securely engage the claws.
INSTALL INDICATOR LIGHT WIRE SUB-ASSEMBLY
1. Securely connect the 2 terminals of the indicator light wire harness to the transmission control switch connector.

  Fig 9: Connecting Terminals Of Indicator Light Wire Harness
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the position indicator light bulb to the indicator light wire sub-assembly.
3. Install the position indicator bulb cap to the position indicator light bulb.

  Fig 10: Identifying Position Indicator Bulb And Cap
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the indicator light wire to the position indicator.
  NOTE: Make sure that the indicator light wire is securely installed to the position indicator.

  Fig 11: Installing Indicator Light Wire
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SHIFT POSITION INDICATOR
1. Install the shift position indicator to the console panel UPR assembly with the 2 screws.
  HINT:

  Engage the 3 claws to install the indicator.

  Fig 12: Locating Shift Position Indicator Screws And Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the indicator light wire harness connector and the wire harness to the console panel UPR assembly.

  Fig 13: Identifying Indicator Light Wire Harness Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
