Transmission Control Switch: Components

Fig 1: Identifying Transmission Control Switch Replacement Components (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

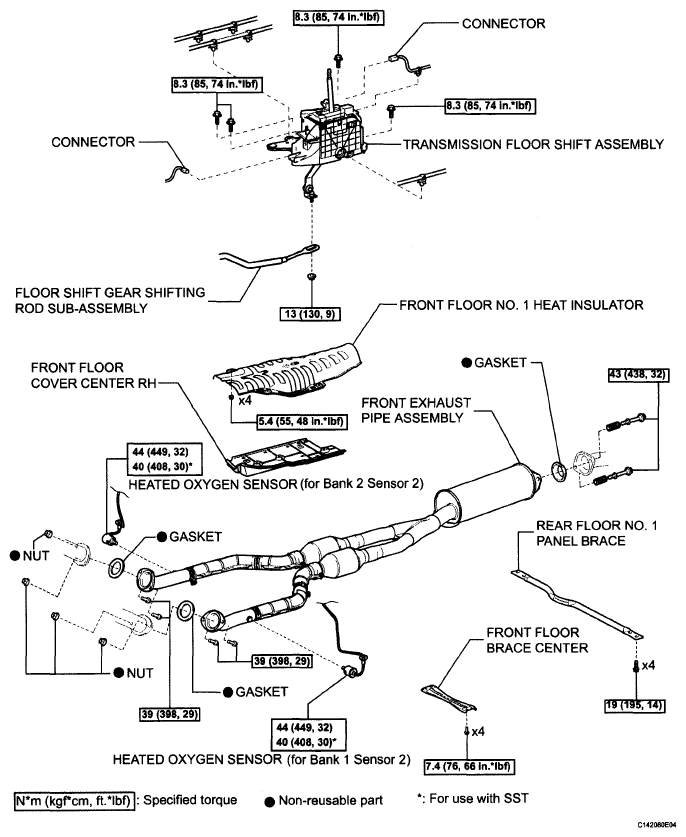

Fig 2: Identifying Transmission Replacement Control Switch Components (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

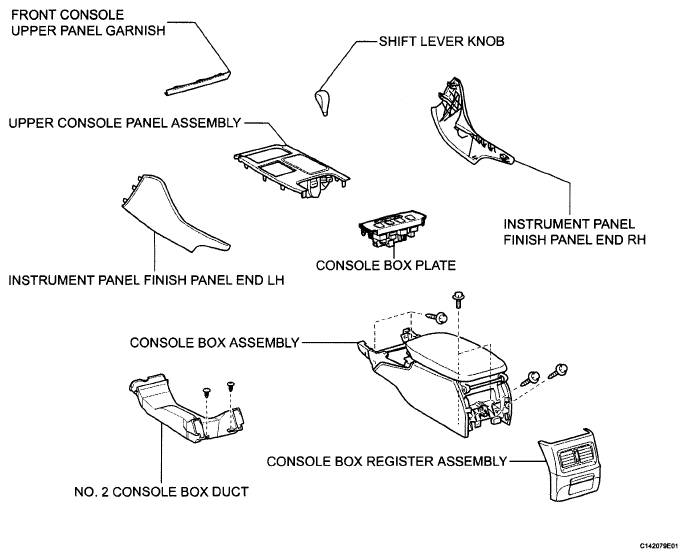

Fig 3: Identifying Transmission Control Switch Replacement Components (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

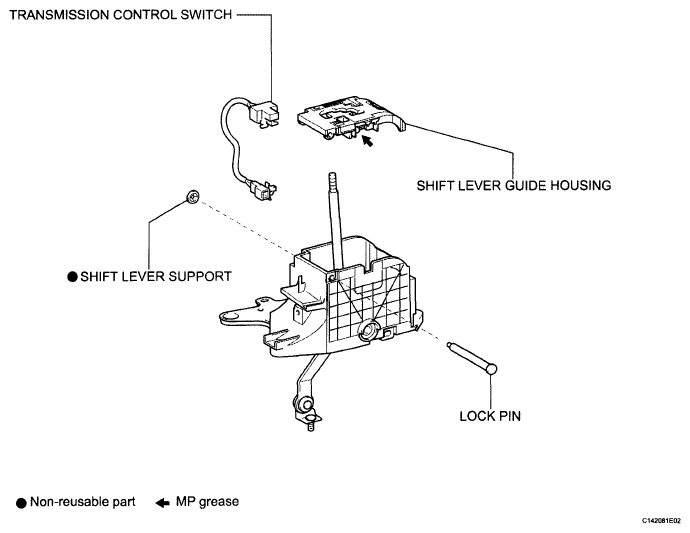

Fig 4: Identifying Transmission Control Switch Components (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
