Lexus
›
2008
›
GS 460
›
Repair and Diagnosis
›
Accessories & Equipment
›
Entertainment Systems
›
Audio/Visual
›
Audio And Visual System
›
Parts Location
Parts Location

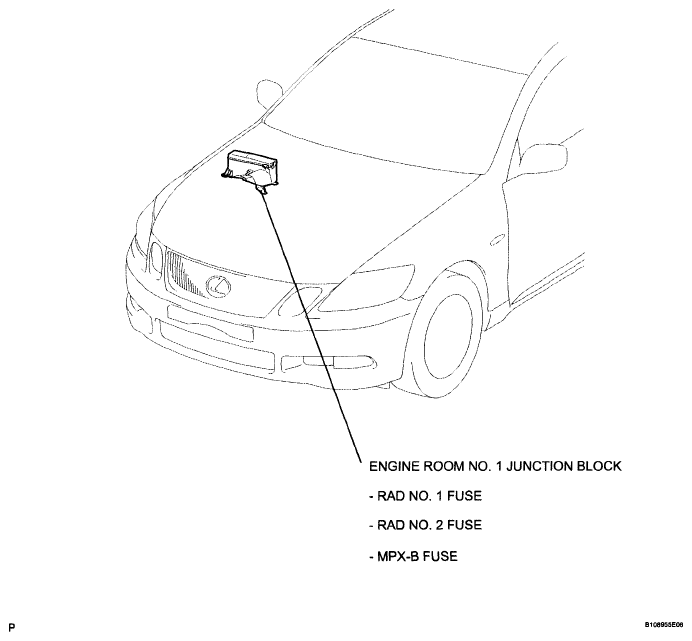

Fig 1: Identifying Engine Room No.1 Junction Block
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

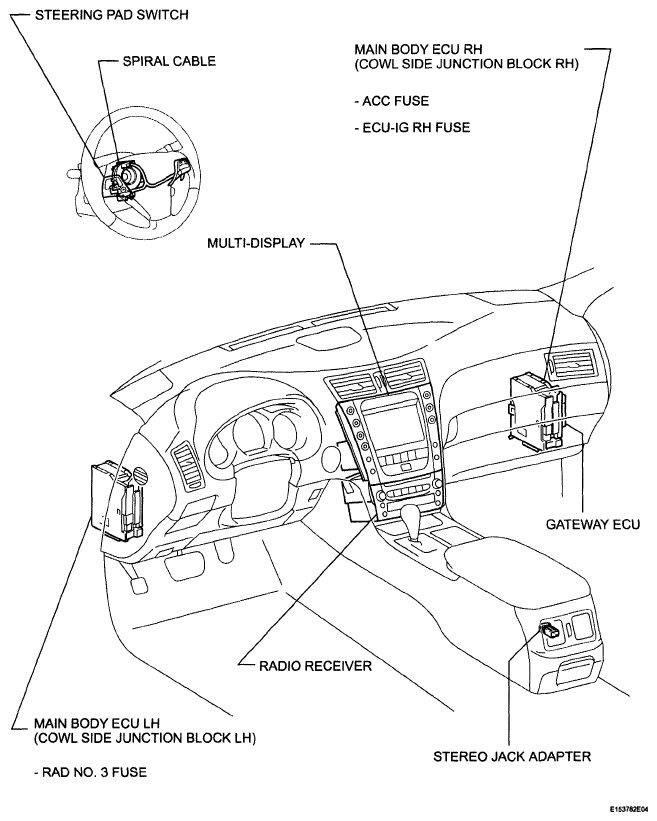

Fig 2: Identifying Audio And Visual System Parts Location (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

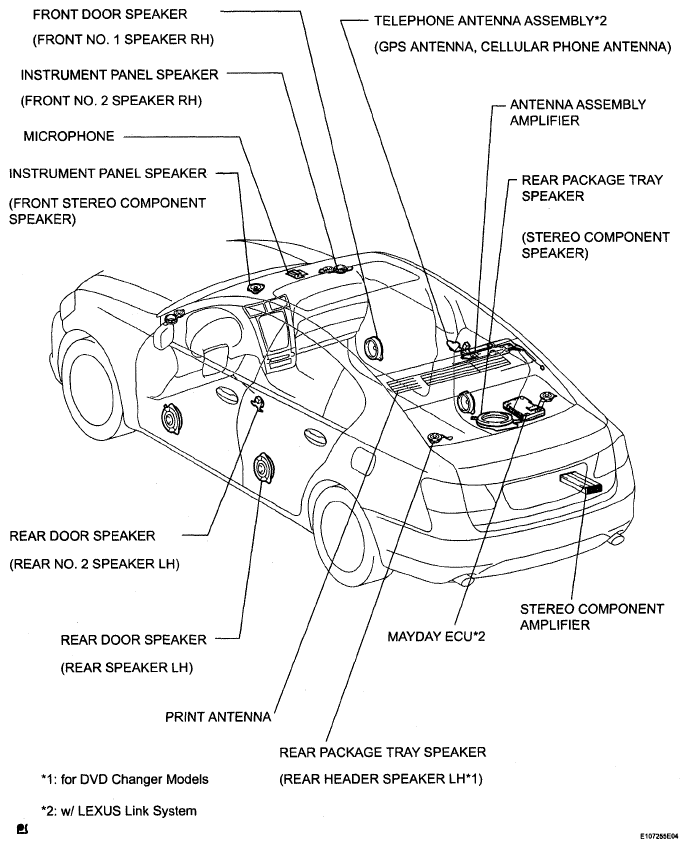

Fig 3: Identifying Audio And Visual System Parts Location (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
