Inspection Procedure

  1. CHECK MULTI-DISPLAY
    1. Check the waveform of the microphone using an oscilloscope.

      OK: Waveform that matches sound spoken into microphone is output.

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Item Content
      Tester Connection K47-11 (MIN+) - K47-10 (MIN-)
      Tool Setting 0.2 V/DIV., 0.2 μs/DIV.
      Condition w/o LEXUS Link System:
      Engine switch on (ACC) and steering pad switch's "Voice" switch is pressed w/LEXUS Link System:
      Engine switch on (ACC) and overhead junction block's "PHONE" button pressed
      Fig 1: Identifying Multi-Display Connector Terminal K47
      G05808065Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK : REPLACE MULTI-DISPLAY

    NG : Go to next step

  2. CHECK LEXUS LINK SYSTEM
    1. Check if the vehicle is equipped with the LEXUS link system.

      Result:

      RESULT CHART

      Result Proceed to
      w/LEXUS Link System A
      w/o LEXUS Link System B

    B :  Go to step  7

    A : Go to next step

  3. CHECK WIRE HARNESS (MAYDAY ECU - OVERHEAD JUNCTION BLOCK AND MULTI-DISPLAY)
    1. Disconnect the U45 ECU connector.
    2. Disconnect the W6 junction block connector.
    3. Disconnect the K47 display connector.
    4. Measure the resistance of the wire harness side connectors.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Condition Specified Condition
      U45-7 (MCVD) - W6-19 (ACC) Always Below 1 Ω
      U45-8 (MCI+) - W6-3 (MI1+) Always Below 1 Ω
      U45-9 (MCI-) - W6-2 (MIC-) Always Below 1 Ω
      U45-17 (MCO+) - K47-11 (MIN+) Always Below 1 Ω
      U45-18 (MCO-) - K47-10 (MIN-) Always Below 1 Ω
      U45-19 (SG) - Body ground Always 10 kΩ or higher
      U45-7 (MCVD) - Body ground Always 10 kΩ or higher
      U45-8 (MCI+) - Body ground Always 10 kΩ or higher
      U45-9 (MCI-) - Body ground Always 10 kΩ or higher
      U45-17 (MCO+) - Body ground Always 10 kΩ or higher
      U45-18 (MCO-) - Body ground Always 10 kΩ or higher

    NG : REPAIR OR REPLACE HARNESS OR CONNECTOR

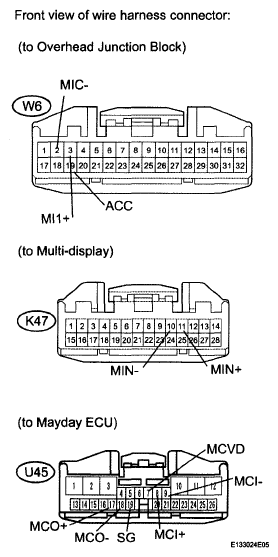

    Fig 2: Identifying U45 ECU Connector, W6 Junction Block Connector And K47 Display Connector
    G05808066Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK : Go to next step

  4. CHECK MAYDAY ECU (MCVD VOLTAGE)
    1. Reconnect the U45 ECU connector.
    2. Measure the voltage of the ECU.

      Standard voltage

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Condition Specified Condition
      U45-7 (MCVD) - Body ground Engine switch on (ACC) 4 to 6 V

    NG : REPLACE MAYDAY ECU

    Fig 3: Identifying U45 ECU Connector
    G05808067Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK : Go to next step

  5. CHECK MAYDAY ECU
    1. Reconnect the W6 junction block connector.
    2. Check the waveform of the mayday ECU using an oscilloscope.

      OK: Waveform that matches sound spoken into microphone is output.

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Item Content
      Tester Connection U45-8 (MCI+) - U45-9 (MCI-)
      Tool Setting 0.2 V/DIV., 0.2 μs/DIV.
      Condition Engine switch on (ACC) and overhead junction block's "PHONE" button pressed
      Fig 4: Identifying Mayday ECU Connector U45
      G05808068Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK : REPLACE MAYDAY ECU

    NG : Go to next step

  6. CHECK MICROPHONE ASSEMBLY
    1. Remove the microphone from the overhead junction block.
    2. Measure the resistance of the microphone.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Condition Specified Condition
      1 (MIC+) - 3 (MIC-) Always 1.9 to 2.2 kΩ

    NG : REPLACE MICROPHONE ASSEMBLY

    Fig 5: Identifying Microphone Assembly Connector Terminal
    G05808069Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK : PROCEED TO NEXT INSPECTION PROCEDURE SHOWN IN PROBLEM SYMPTOMS TABLE

  7. CHECK WIRE HARNESS (OVERHEAD JUNCTION BLOCK - MULTI-DISPLAY)
    1. Disconnect the W6 junction block connector.
    2. Disconnect the K47 display connector.
    3. Measure the resistance of the wire harness side connectors.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Condition Specified Condition
      K47-9 (MACC) - W6-19 (ACC) Always Below 1 Ω
      K47-11 (MIN+) - W6-3 (MI1+) Always Below 1 Ω
      K47-10 (MIN-) - W6-2 (MIC-) Always Below 1 Ω
      K47-9 (MACC) - Body ground Always 10 kΩ or higher
      K47-11 (MIN+) - Body ground Always 10 kΩ or higher
      K47-10 (MIN-) - Body ground Always 10 kΩ or higher

    NG : REPAIR OR REPLACE HARNESS OR CONNECTOR

    Fig 6: Identifying W6 Junction Block Connector And K47 Display Connector
    G05808070Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK : Go to next step

  8. CHECK MULTI-DISPLAY (MACC VOLTAGE)
    1. Reconnect the K47 display connector.
    2. Measure the voltage according to the value (s) in the table below.

      Standard voltage

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Condition Specified Condition
      K47-9 (MACC) - Body ground Engine switch on (ACC) 4 to 6 V

    NG : REPLACE MULTI-DISPLAY

    Fig 7: Identifying K47 Display Connector
    G05808071Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK : Go to next step

  9. CHECK MICROPHONE ASSEMBLY
    1. Remove the microphone from the overhead junction block.
    2. Measure the resistance of the microphone.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Condition Specified Condition
      1 (MIC+) - 3 (MIC-) Always 1.9 to 2.2 kΩ

    NG : REPLACE MICROPHONE ASSEMBLY

    Fig 8: Identifying Microphone Assembly Connector Terminal
    G05808069Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK : PROCEED TO NEXT INSPECTION PROCEDURE SHOWN IN PROBLEM SYMPTOMS TABLE
