Navigation ECU Power Source Circuit
›
Wiring Diagram
Navigation ECU Power Source Circuit: Wiring Diagram

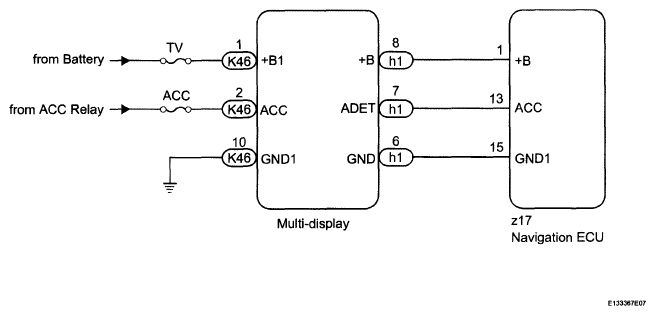

Fig 1: Navigation ECU Power Source Circuit - Wiring Diagram
