Driver Side Power Window does not Operate with Power Window Master Switch: Wiring Diagram

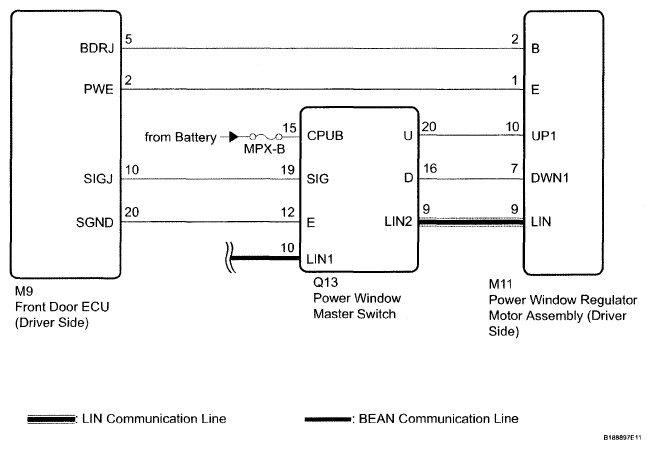

Fig 1: Driver Side Power Window With Power Window Master Switch - Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
