Brake Control Power Supply: Components

Fig 1: Identifying Brake Control Power Supply Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

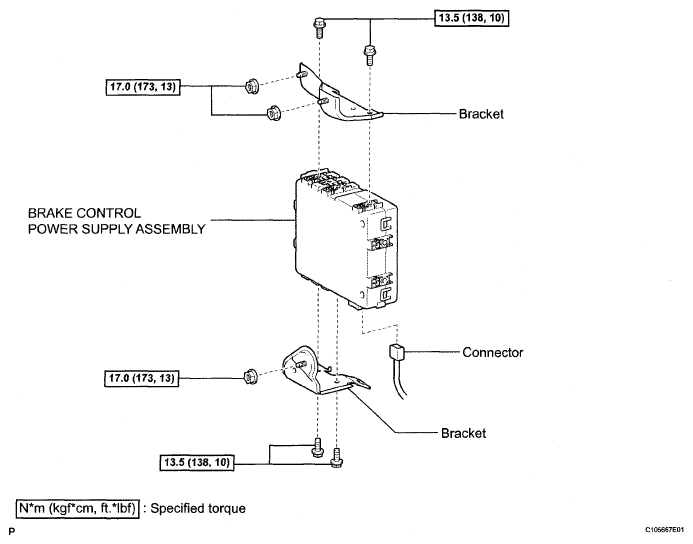

Fig 2: Brake Control Power Supply Replacement Components (2 Of 2) With Torque Specifications
