VSC Warning Light Remains ON: Wiring Diagram

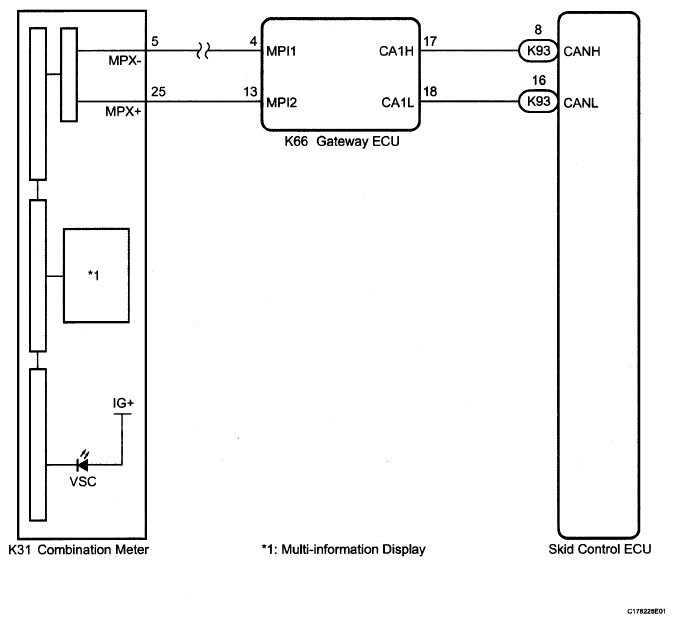

Fig 1: VSC Warning Light Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
