Throttle Body: Components

Fig 1: Air Fuel Ratio Sensor Replacement Components With Torque Specifications (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

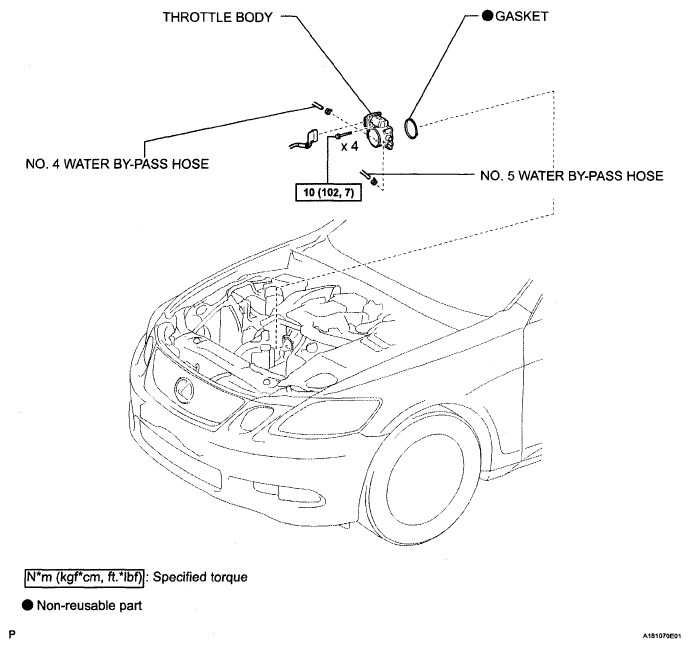

Fig 2: Throttle Body Replacement Components With Torque Specifications (2 Of 2)
