VC Output Circuit: Wiring Diagram

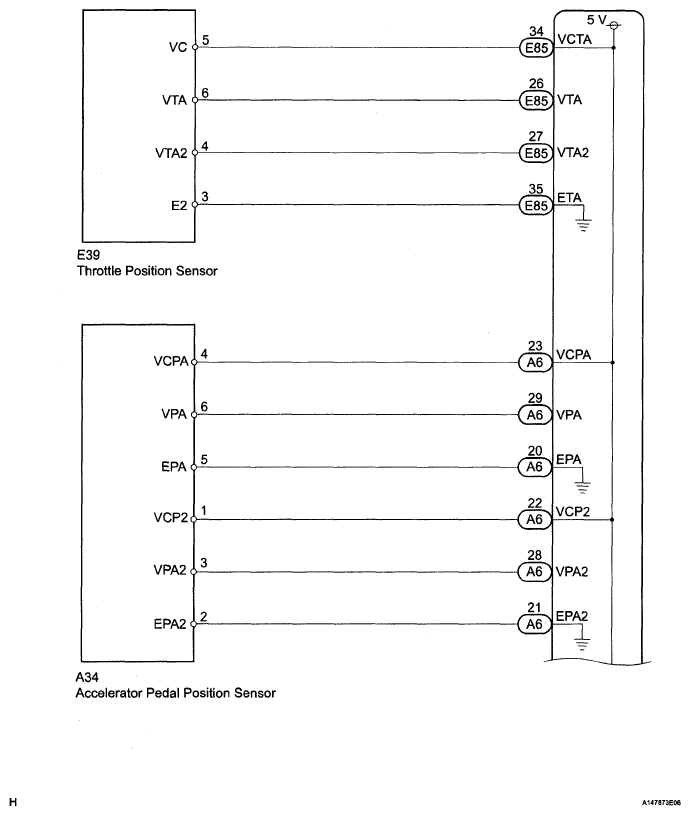

Fig 1: VC Output Circuit - Wiring Diagram (1 Of 3)
G05804005Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

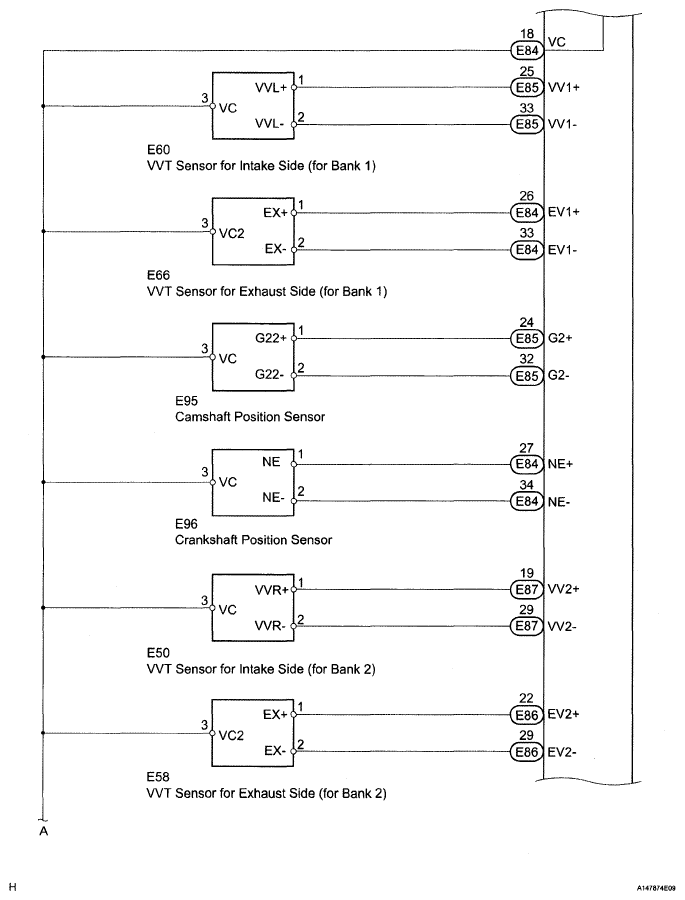

Fig 2: VC Output Circuit - Wiring Diagram (2 Of 3)
G05804006Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

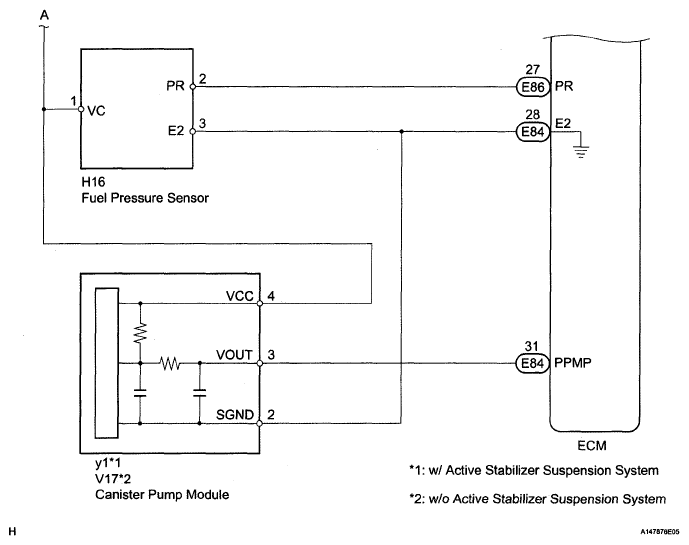

Fig 3: VC Output Circuit - Wiring Diagram (3 Of 3)
G05804007Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
