Absorber Control Ecu: Components

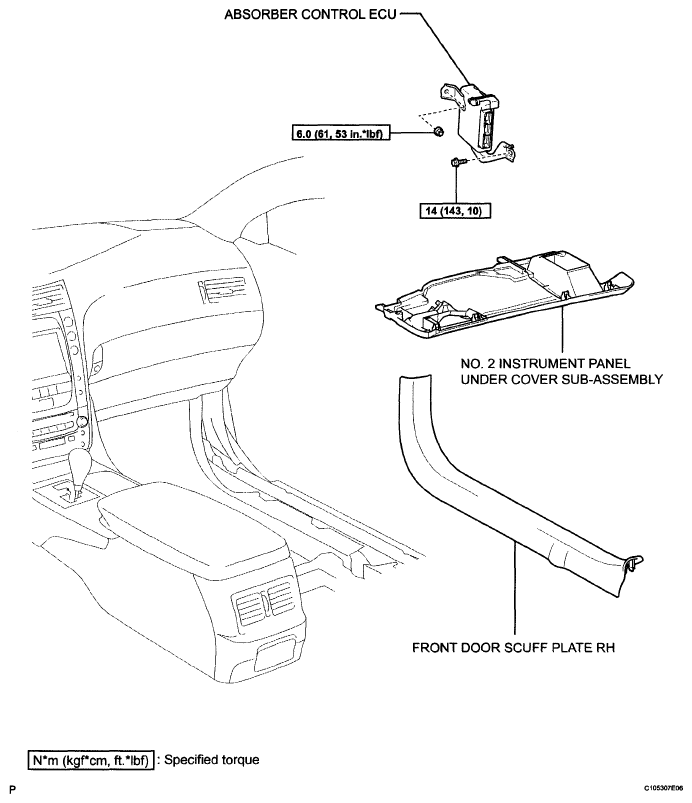

Fig 1: Identifying Absorber Control ECU Components

G05806909

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
