Park/Neutral Position Switch: Components

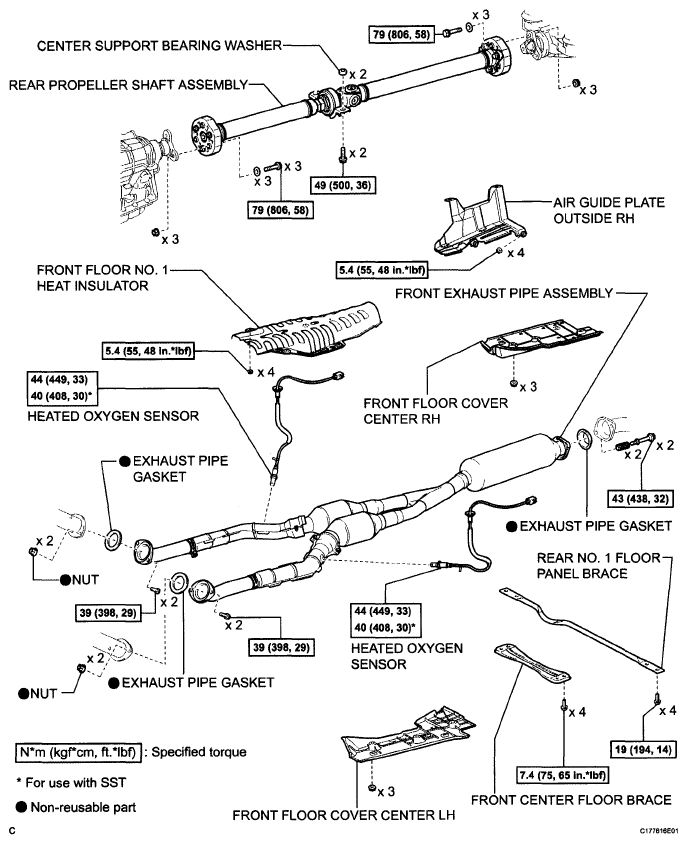

Fig 1: Park/Neutral Position Switch Replacement Components With Torque Specifications (1 Of 2)
G05806358Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

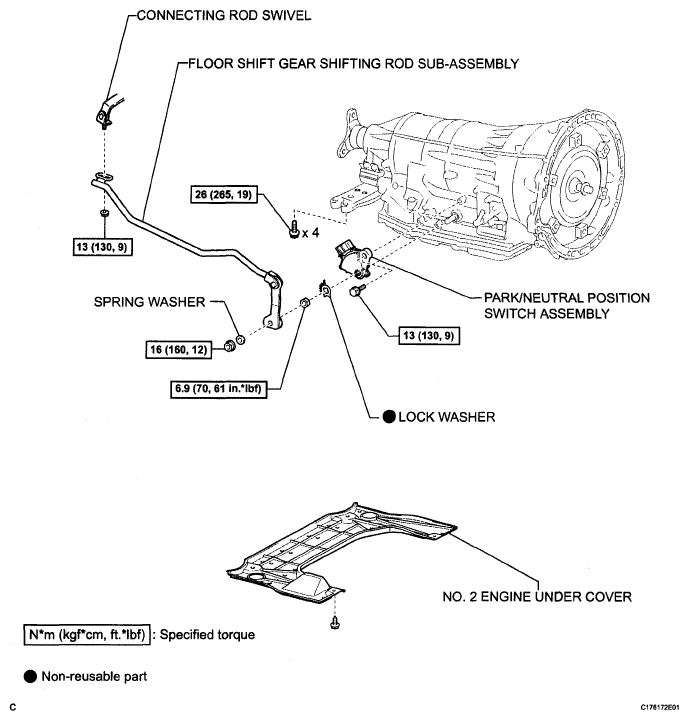

Fig 2: Park/Neutral Position Switch Replacement Components With Torque Specifications (2 Of 2)
G05806359Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
