Radio Receiver: Removal

REMOVE NO. 2 UPPER CONSOLE PANEL GARNISH (See REMOVAL )
REMOVE NO. 1 UPPER CONSOLE PANEL GARNISH (See REMOVAL )
REMOVE INSTRUMENT PANEL GARNISH SUB-ASSEMBLY LH (See REMOVAL )
REMOVE INSTRUMENT PANEL GARNISH SUB-ASSEMBLY RH
REMOVE INTEGRATION CONTROL AND PANEL ASSEMBLY (See REMOVAL )
REMOVE NO. 1 RADIO BRACKET
1. Remove the 5 screws.

  Fig 1: Locating No. 1 Radio Bracket Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the screw.
3. Release the 2 claws and remove the No. 1 radio bracket.

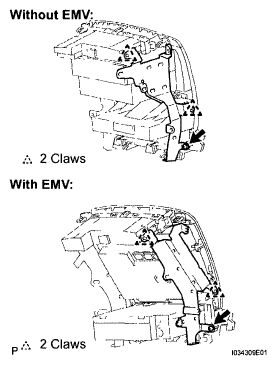

Fig 2: Locating Claws On No. 1 Radio Bracket
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 2 RADIO BRACKET
1. Remove the 5 screws

  Fig 3: Locating No. 2 Radio Bracket Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the screw
3. Release the 2 claws and remove the No. 2 radio bracket.

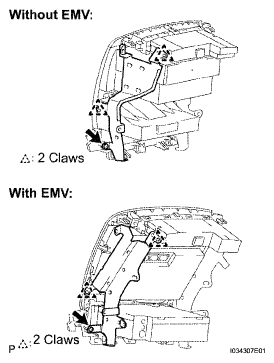

Fig 4: Locating Claws On No. 2 Radio Bracket
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE RADIO RECEIVER ASSEMBLY
1. Without EMV:
  Release the 3 claws and remove the radio receiver assembly.

  With EMV:

  Release the 4 claws and remove the radio receiver assembly.
