Manual Up/Down Function does not Operate on Passenger Side Only
›
Wiring Diagram
Manual Up/Down Function does not Operate on Passenger Side Only: Wiring Diagram

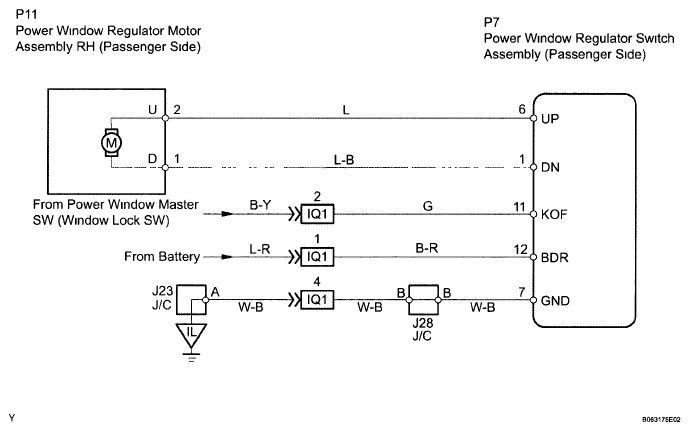

Fig 1: Power Window - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
