Manual Up/Down Function does not Operate on Rear LH Only
›
Wiring Diagram
Manual Up/Down Function does not Operate on Rear LH Only: Wiring Diagram

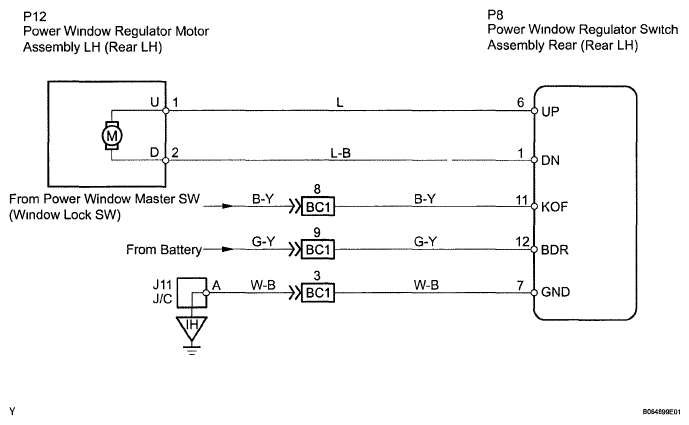

Fig 1: Power Window - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
