Remote Up/Down Function does not Operate: Wiring Diagram

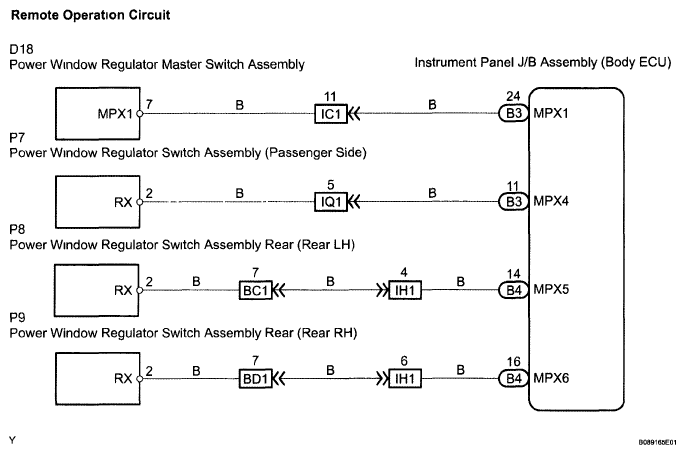

Fig 1: Remote Operation - Wiring Diagram
G05846603Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
