Windshield Glass: Components

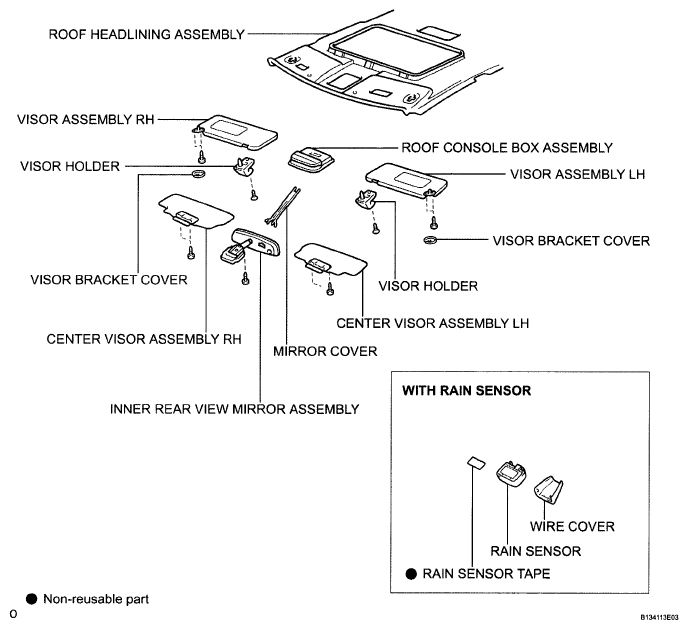

Fig 1: Identifying Roof Headlining And Visor Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

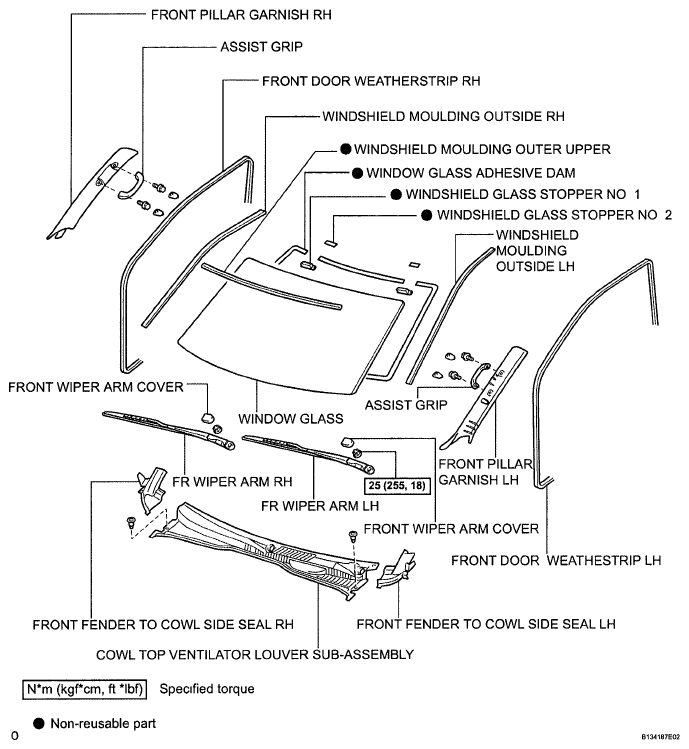

Fig 2: Identifying Windshield Glass Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
