Inspection Procedure

NOTE: When replacing the master cylinder solenoid, perform zero point calibration (See CALIBRATION  ).
  1. INSPECT SKID CONTROL ECU (EXI TERMINAL)
    1. Disconnect the skid control ECU connector.
    2. Turn the ignition switch to the ON position.
    3. Measure the voltage according to the value(s) in the table below.

      Standard voltage

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Condition Specified Condition
      S37-27 (EXI) - Body ground Center diff. locked (Center diff. lock switch ON) Below 1.5 V
      S37-27 (EXI) - Body ground Center diff. free (Center diff. lock switch OFF) 10 to 14 V

    OK: REPLACE MASTER CYLINDER SOLENOID

    Fig 1: Identifying S37 Skid Control ECU Connector
    G05262747Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: Go to next step

  2. INSPECT CENTER DIFFERENTIAL LOCK SWITCH
    1. Disconnect the center diff. lock switch connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Condition Specified Condition
      C4-3 - C4-4 Switch is pushed in Below 1 Ω
      C4-3 - C4-4 Switch is not pushed in 10 kΩ or higher

    NG: REPLACE CENTER DIFFERENTIAL LOCK SWITCH

    Fig 2: Inspecting Center Differential Lock Switch
    G05262748Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK: Go to next step

  3. INSPECT 4WD CONTROL ECU

    NG: REPLACE 4WD CONTROL ECU

    OK: Go to next step

  4. CHECK HARNESS AND CONNECTOR (4WD CONTROL ECU - CENTER DIFFERENTIAL LOCK SWITCH)
    1. Disconnect the 4WD control ECU connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Specified Condition
      C5-6 (C/D) - C4-3 Below 1 Ω
      C5-6 (C/D) - Body ground 10 kΩ or higher
      C4-4 - Body ground Below 1 Ω

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    Fig 3: Checking Harness And Connector (4WD Control ECU - Center Differential Lock Switch)
    G05262749Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK: Go to next step

  5. CHECK HARNESS AND CONNECTOR (SKID CONTROL ECU - 4WD CONTROL ECU)
    1. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Specified Condition
      S37-27 (EXI) - C5-8 (P1) Below 1 Ω
      S37-27 (EXI) - Body ground 10 kΩ or higher

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

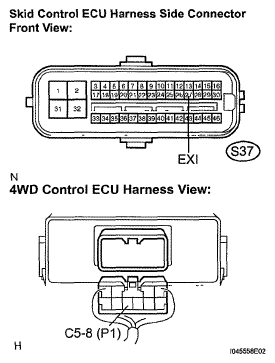

    Fig 4: Checking Harness And Connector (Skid Control ECU - 4WD Control ECU)
    G05845023Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK: REPLACE MASTER CYLINDER SOLENOID
