DTC C1380/64 Stop Light Control Relay Malfunction
›
Wiring Diagram
DTC C1380/64 Stop Light Control Relay Malfunction: Wiring Diagram

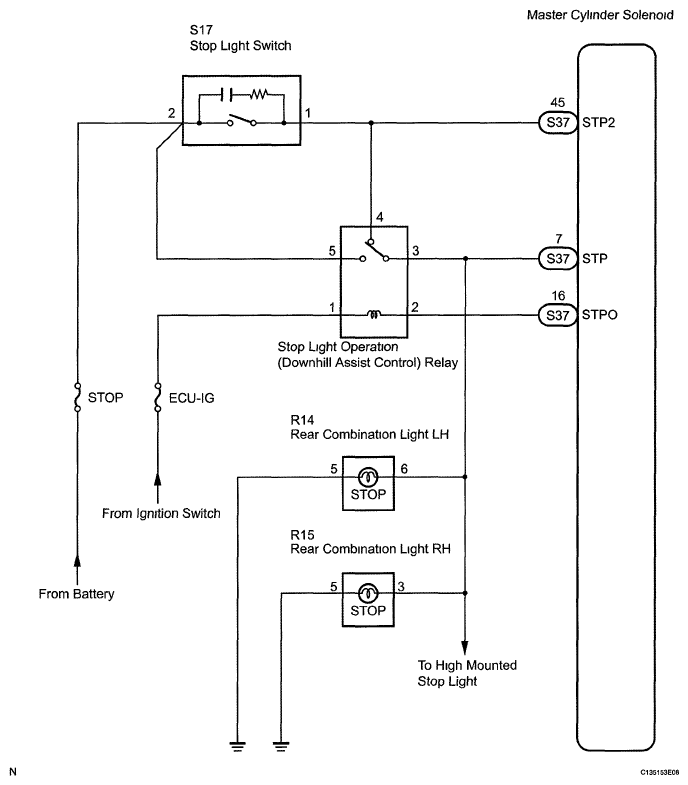

Fig 1: Stop Light Control Relay Malfunction - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
