Front Wiper without Rain Sensor and Washer: Notes

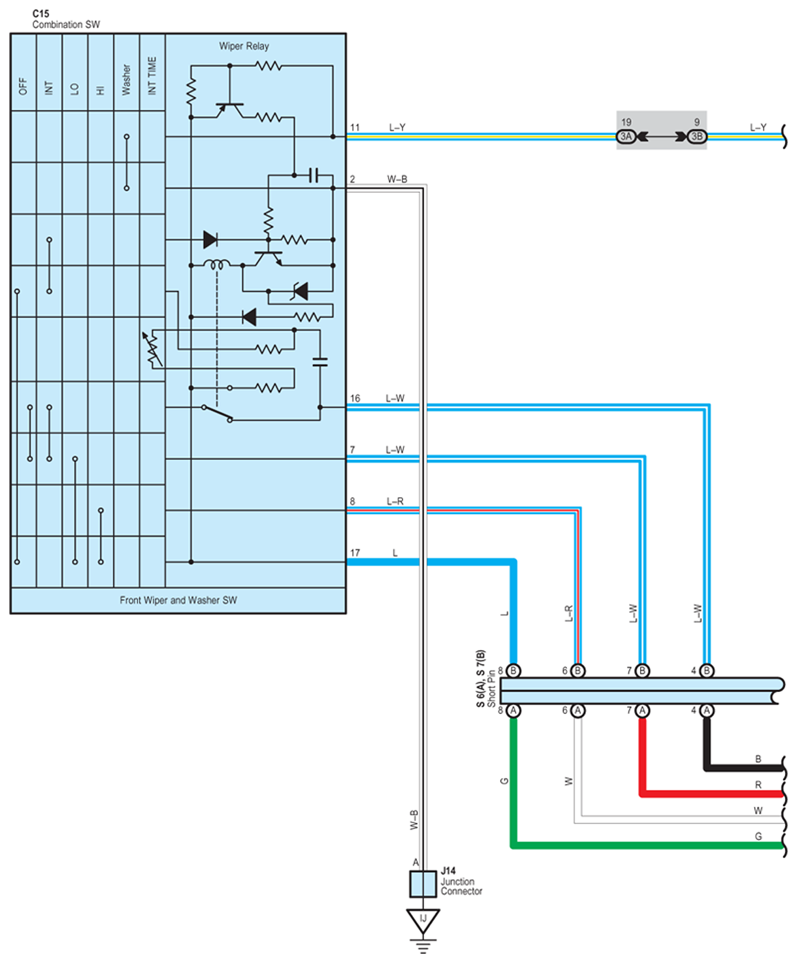

Fig 1: Front Wiper Without Rain Sensor And Washer - Circuit Diagram (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

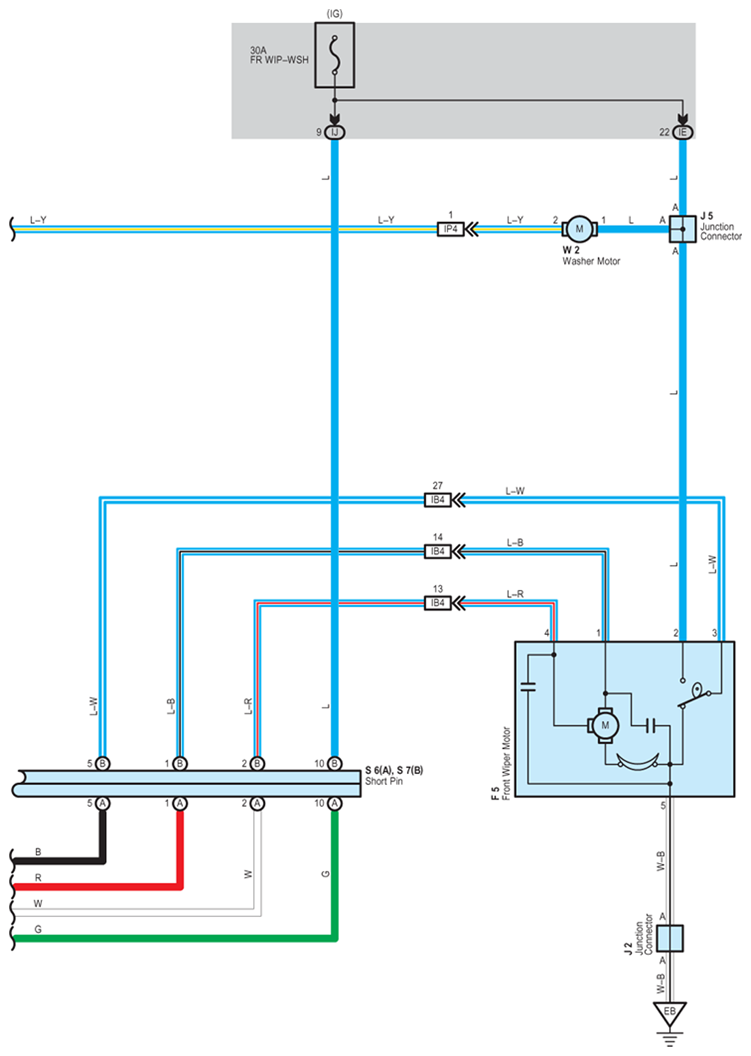

Fig 2: Front Wiper Without Rain Sensor And Washer - Circuit Diagram (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
