Key Reminder and Seat Belt Warning: Notes

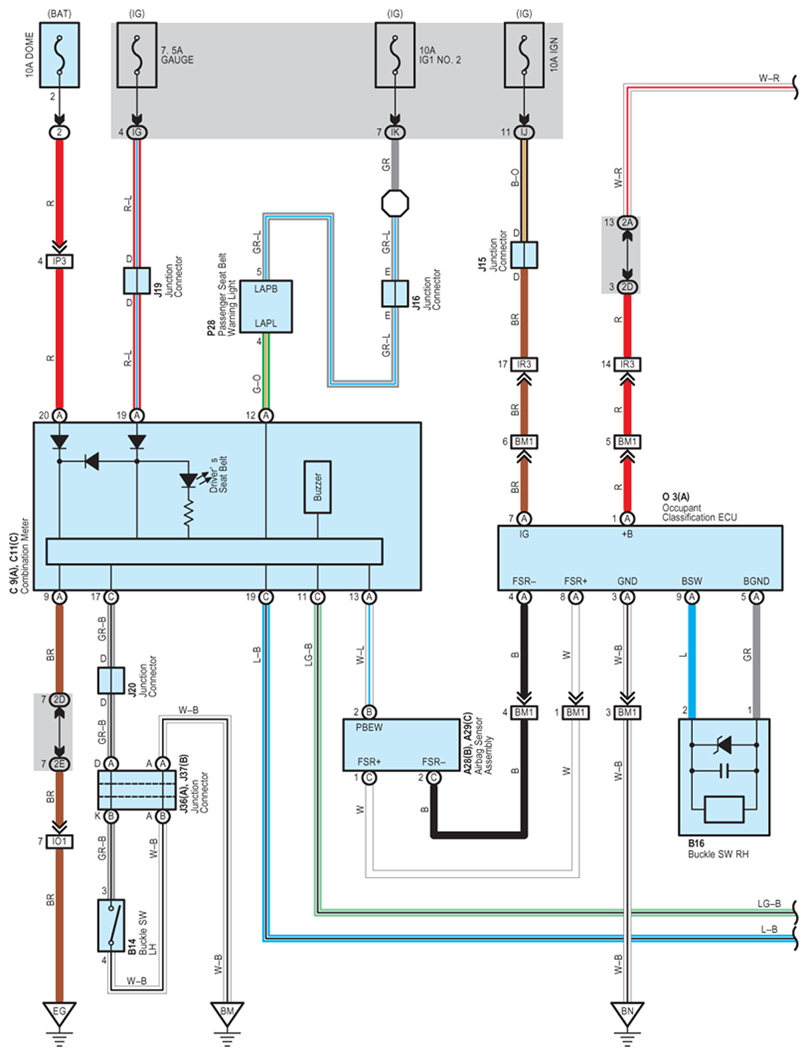

Fig 1: Key Reminder And Seat Belt Warning - Circuit Diagram (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

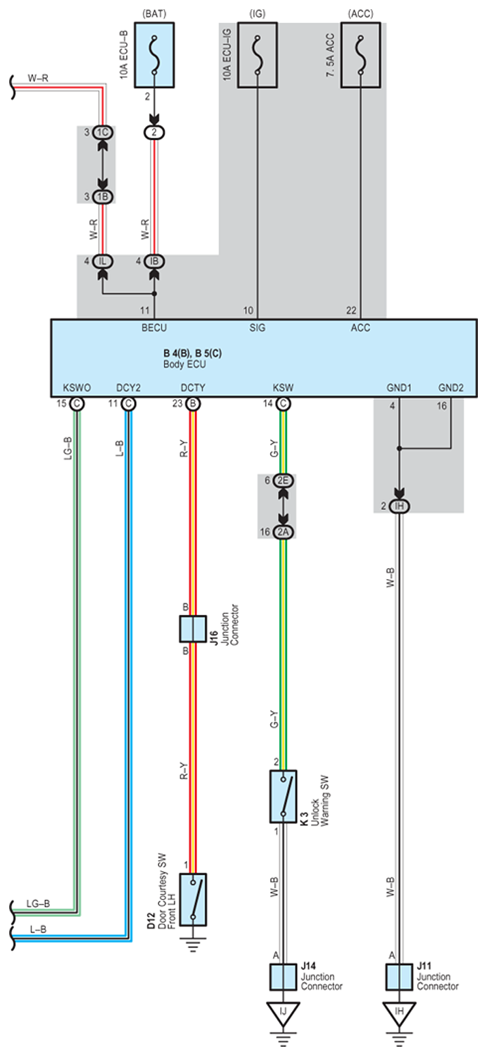

Fig 2: Key Reminder And Seat Belt Warning - Circuit Diagram (2 Of 2)
