Repair and Diagnosis
›
Engine Performance
›
Engine Control System
›
SFI System
›
Cranking Holding Function Circuit
›
Wiring Diagram
Cranking Holding Function Circuit: Wiring Diagram

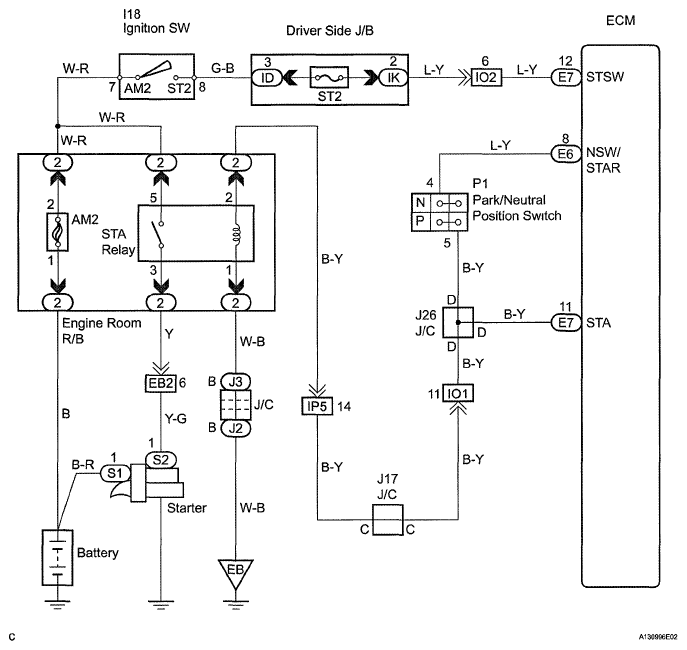

Fig 1: Starter Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
