Repair and Diagnosis
›
Engine Performance
›
Engine Control System
›
SFI System
›
IACV Control Circuit
›
Wiring Diagram
IACV Control Circuit: Wiring Diagram

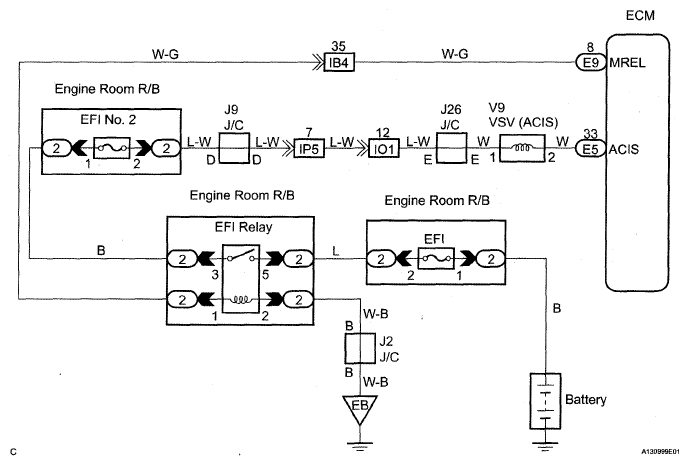

Fig 1: IACV Control Wiring Diagram
