MIL Circuit: Wiring Diagram

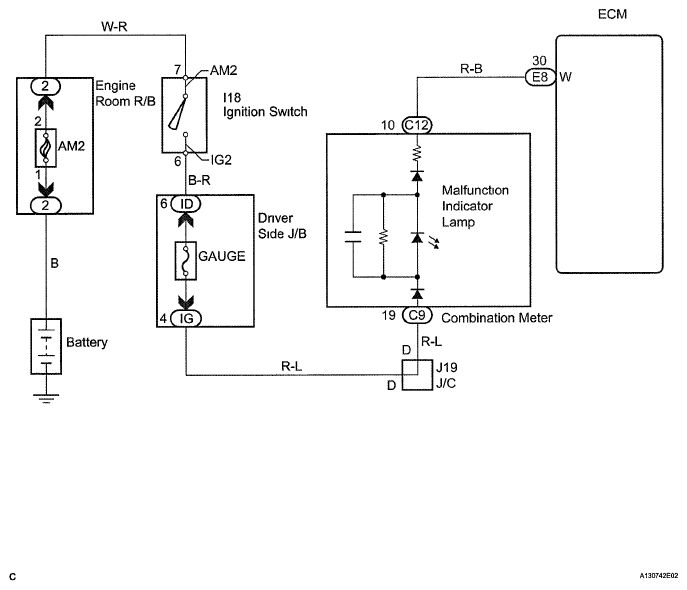

Fig 1: MIL Wiring Diagram

G05843776

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
