Repair and Diagnosis
›
Transmission
›
Automatic Trans
›
Automatic Transaxle
›
Automatic Transmission System
›
Parts Location
Parts Location

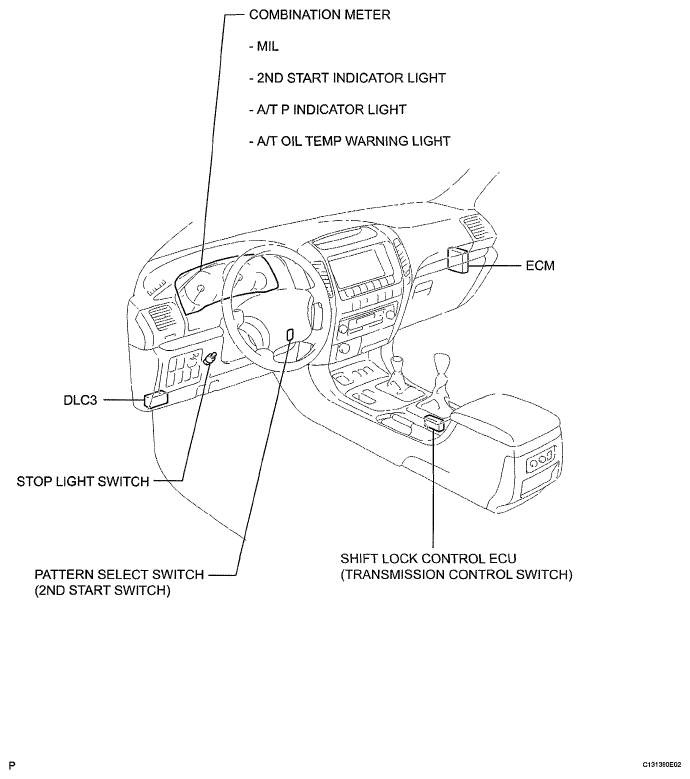

Fig 1: Identifying Automatic Transmission System Parts Location (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

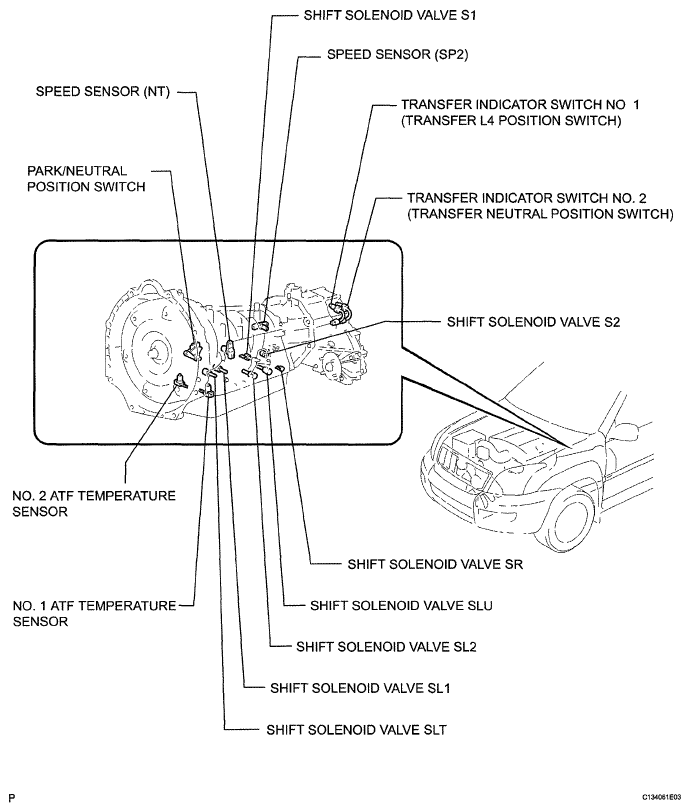

Fig 2: Identifying Automatic Transmission System Parts Location (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
