Stereo Component Amplifier: Components

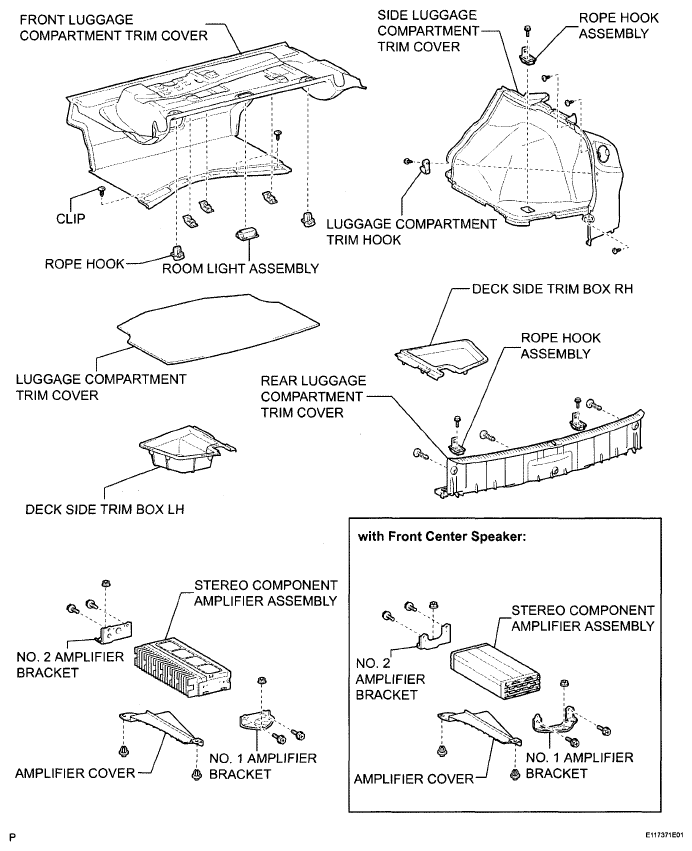

Fig 1: Identifying Stereo Component Amplifier Components
G05828232Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
