System Diagram

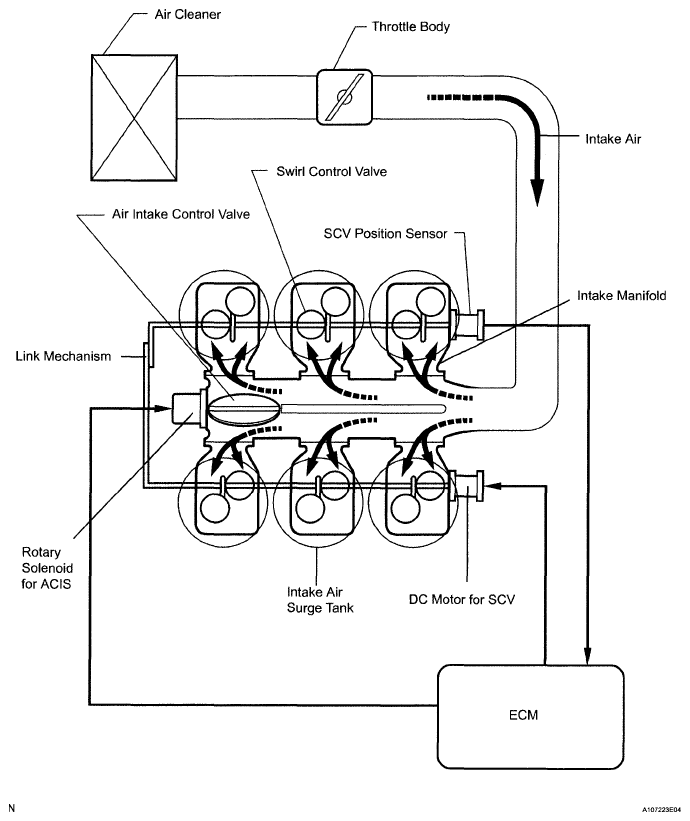

  1. INTAKE CONTROL SYSTEM VALVE DIAGRAM
    Fig 1: Intake Control System Valve Diagram
    G05823878Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

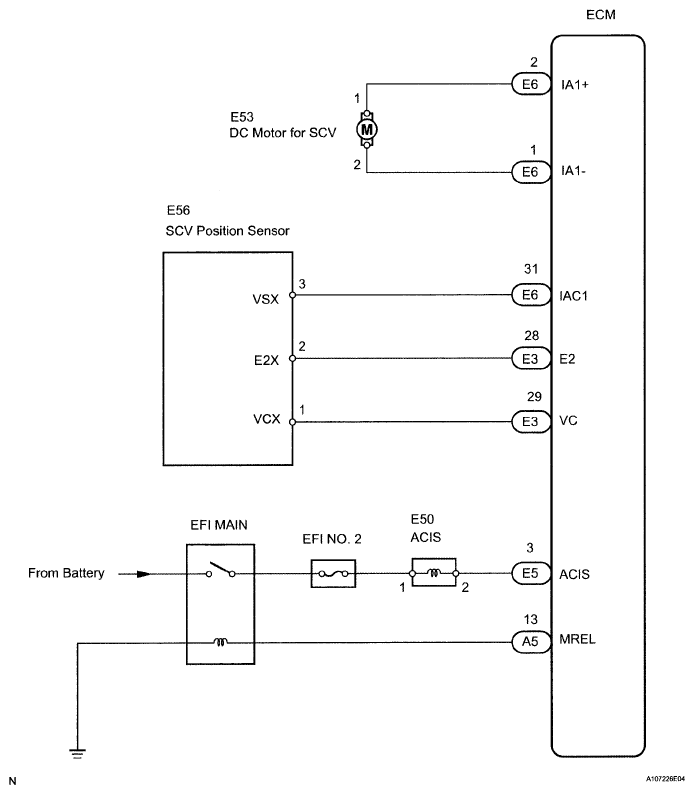

  2. ELECTRICAL WIRING DIAGRAM
    Fig 2: Electrical Wiring Diagram
    G05823879Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
