Cold Start Injector: Components

Fig 1: Identifying Cold Start Injector Replacement Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

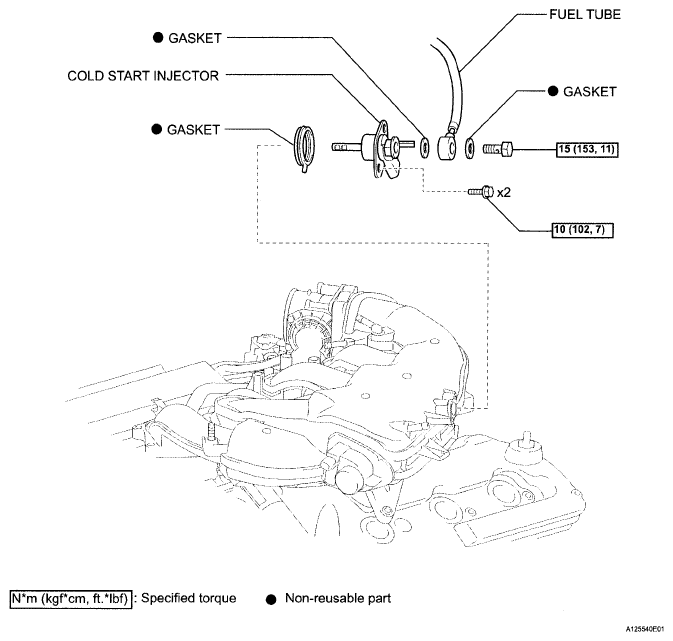

Fig 2: Cold Start Injector Replacement Components (2 Of 2) with Torque Specifications
