Fuel Tank: Components

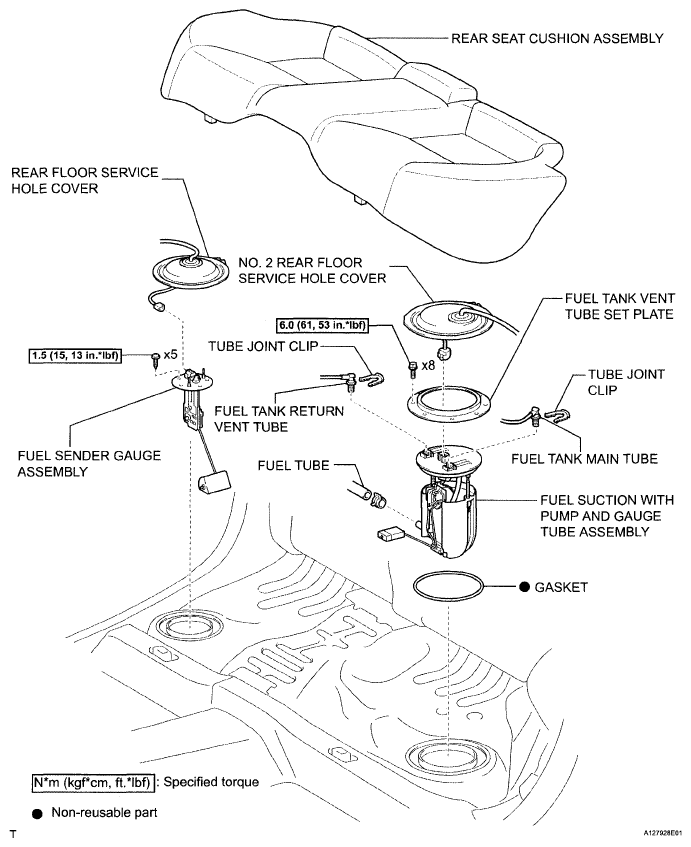

Fig 1: Fuel Tank Replacement Components (1 Of 4) with Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

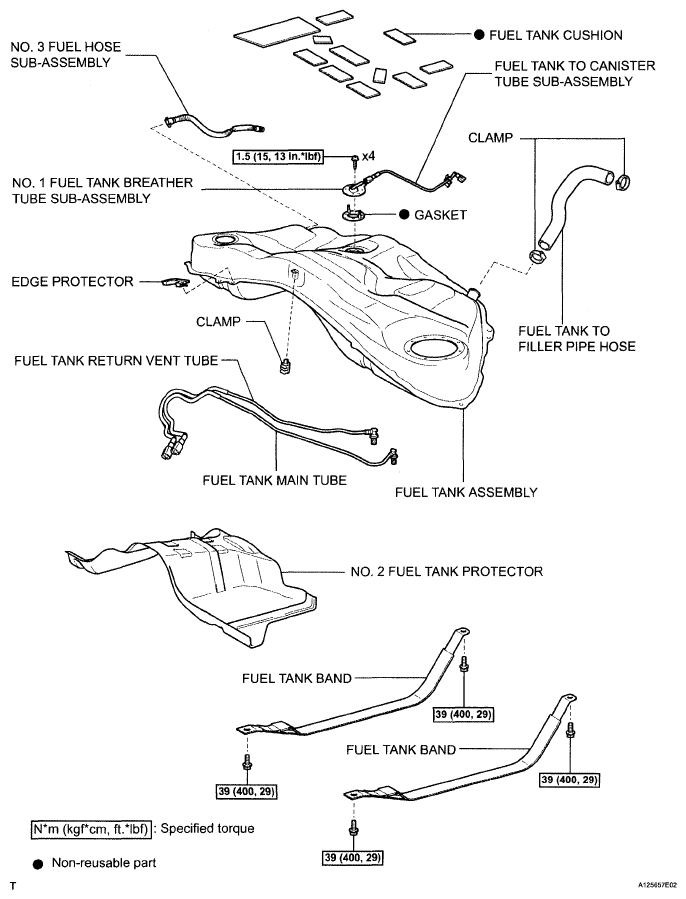

Fig 2: Identifying Fuel Tank Replacement Components (2 Of 4) with Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

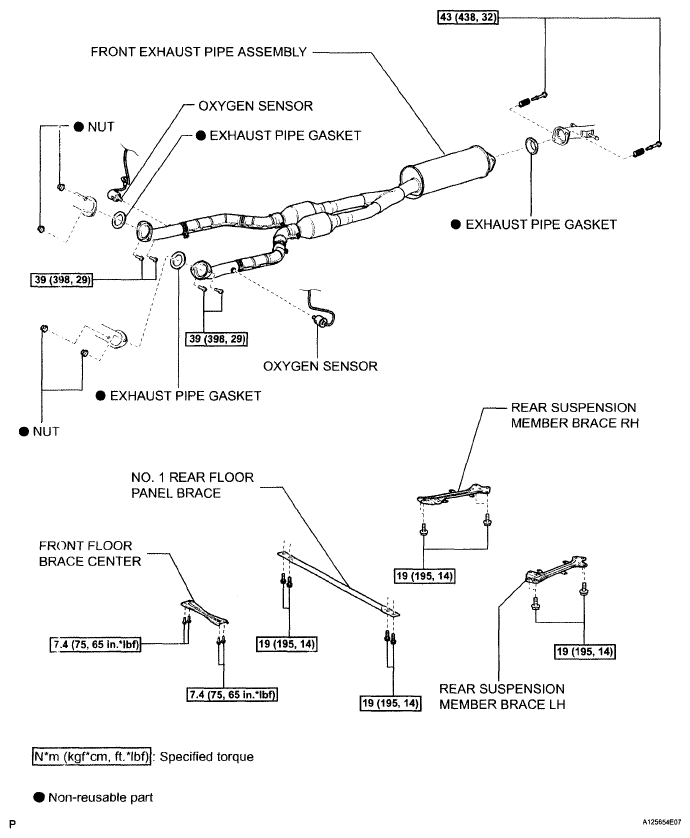

Fig 3: Identifying Fuel Tank Replacement Components (3 Of 4) with Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

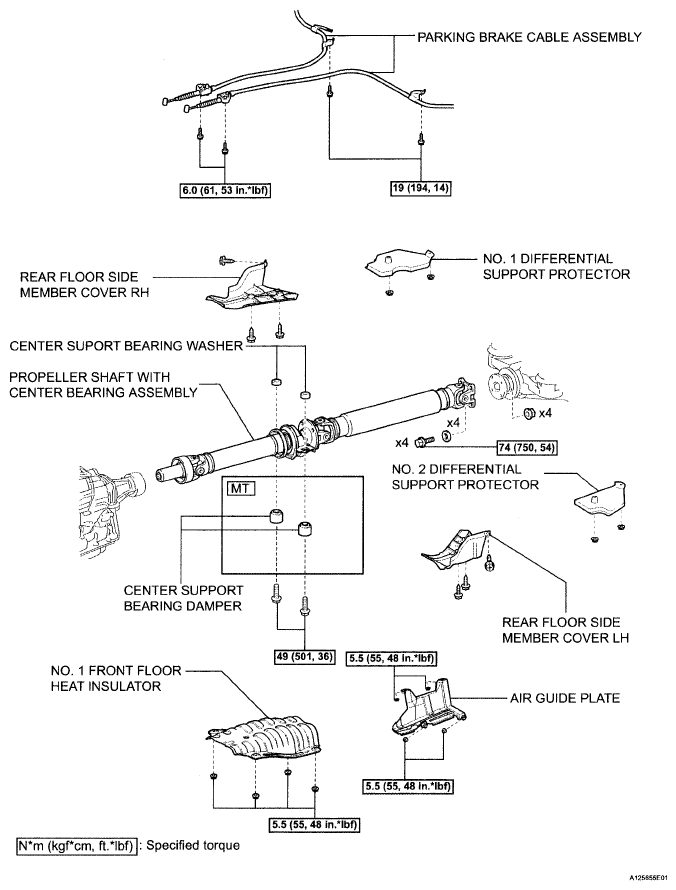

Fig 4: Fuel Tank Replacement Components (4 Of 4) with Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
