Yaw Rate Sensor Communication Stop Mode: Wiring Diagram

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.

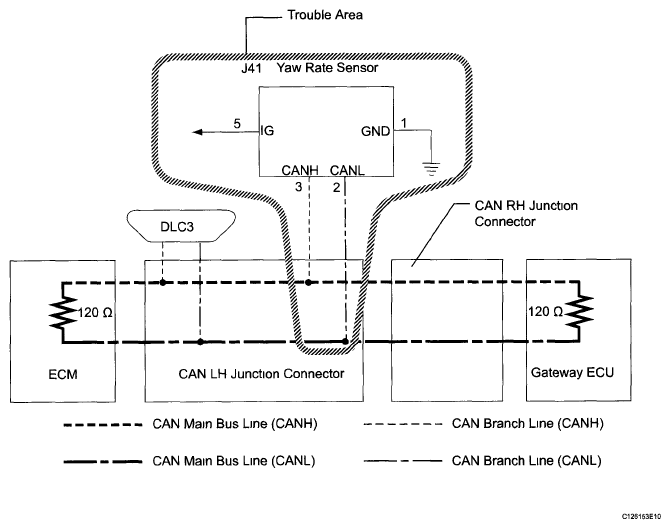

Fig 1: Yaw Rate Sensor Communication - Wiring Diagram
G05754148Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
