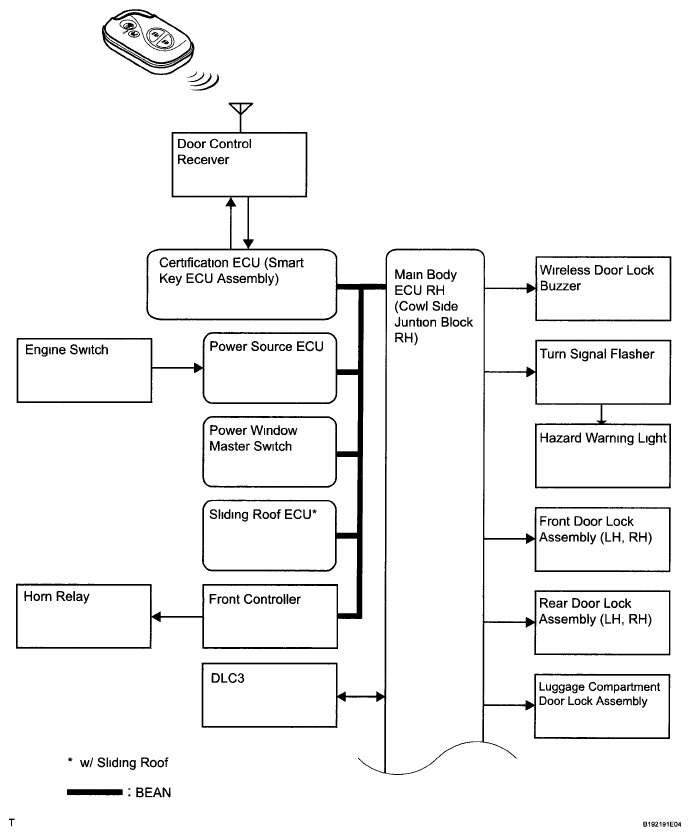

System Diagram
WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.
SIGNAL REFERENCE
| Transmitting ECU (Transmitter) | Receiving ECU (Receiver) | Signal | Line | ||
|---|---|---|---|---|---|
| Main body ECU RH (cowl side junction block RH) | Certification ECU (smart key ECU assembly) | IG switch signal | BEAN | ||
| Power source ECU | Main body ECU RH (cowl side junction block RH) | Engine switch signal | BEAN | ||
| Power window master switch | Main body ECU RH (cowl side junction block RH) | Power window open signal | BEAN | ||
| Power window master switch(1) | Sliding roof ECU(1) | Sliding roof open signal(1) | BEAN | ||
| Main body ECU RH (cowl side junction block RH) | Front controller | Vehicle horn sound request | BEAN | ||
|
|||||
