COMPRESSOR AND MAGNETIC CLUTCH (for 4WD): Components

Fig 1: Exploded View Of Compressor And Magnetic Clutch (4WD) Replacement Components (1 Of 2) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

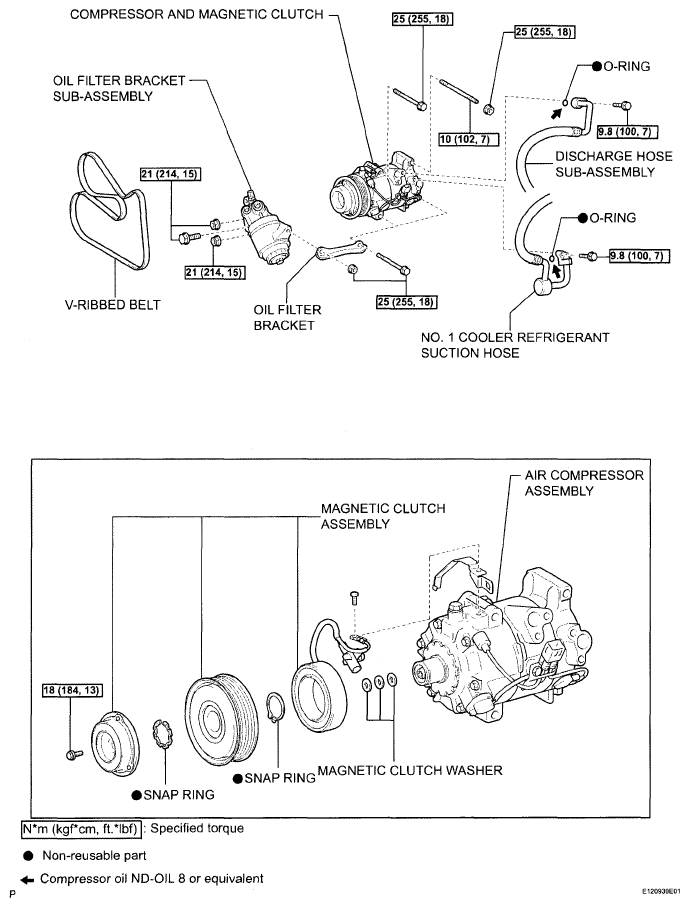

Fig 2: Exploded View Of Compressor And Magnetic Clutch (4WD) (2 Of 2) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
