A760H Automatic Transaxle
›
Automatic Transmission System
›
Shift Paddle Switch Circuit
›
Wiring Diagram
Shift Paddle Switch Circuit: Wiring Diagram

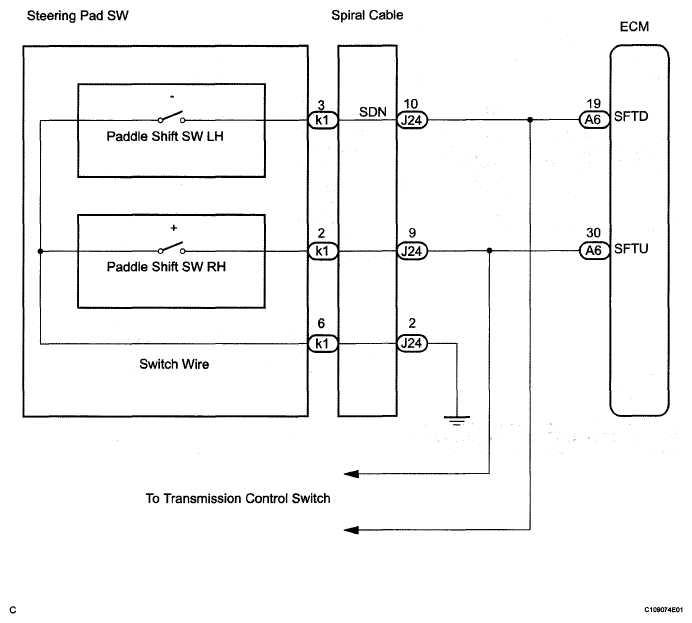

Fig 1: Shift Paddle Switch Circuit - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
