Transfer Assembly: Components

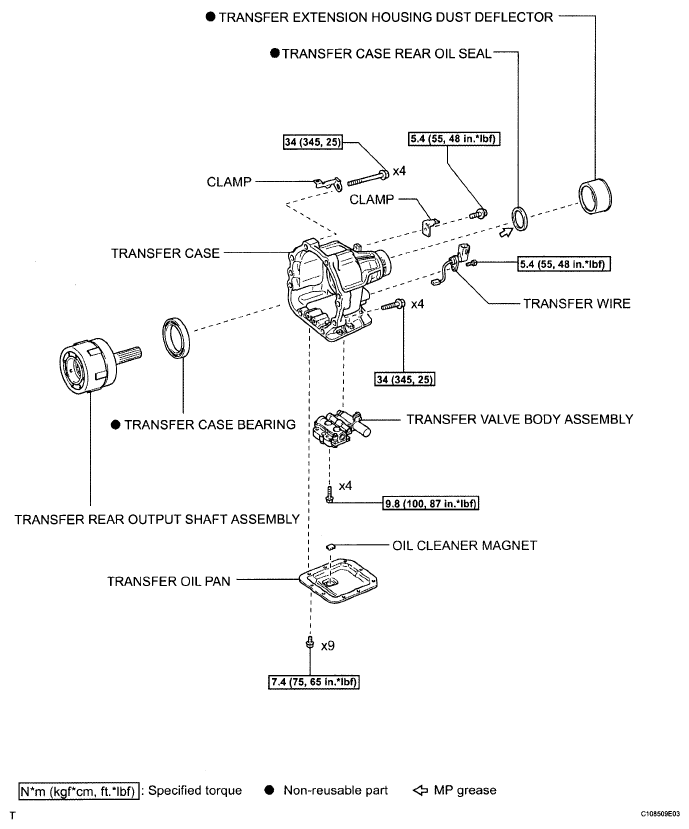

Fig 1: Exploded View Of Transfer Assembly Replacement Components (1 Of 7) with Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Exploded View Of Transfer Assembly Components (2 Of 7) with Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

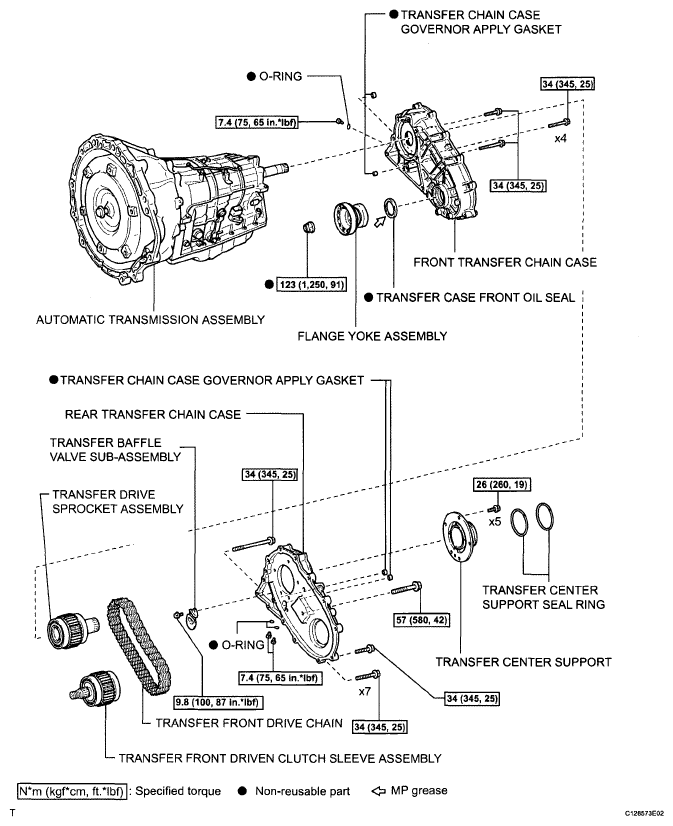

Fig 3: Exploded View Of Transfer Assembly Components (3 Of 7) with Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Exploded View Of Transfer Assembly Components (4 Of 7) with Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Exploded View Of Transfer Assembly Components (5 Of 7) with Torque Specifications

Fig 6: Exploded View Of Transfer Assembly Components (6 Of 7)

Fig 7: Exploded View Of Transfer Assembly Components (7 Of 7)
