Shift Lever Assembly: Components

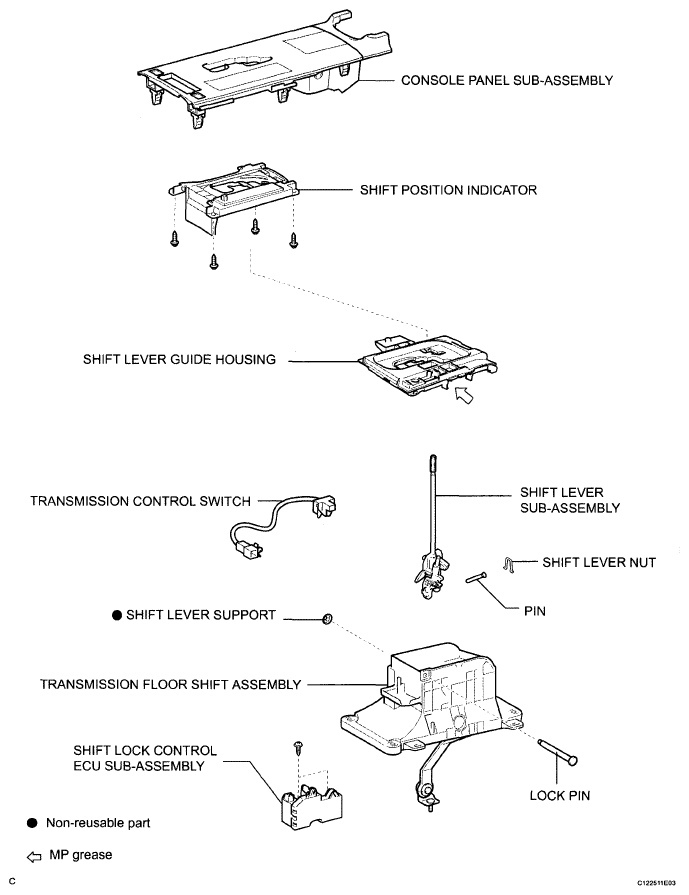

Fig 1: Identifying Shift Lever Assembly Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

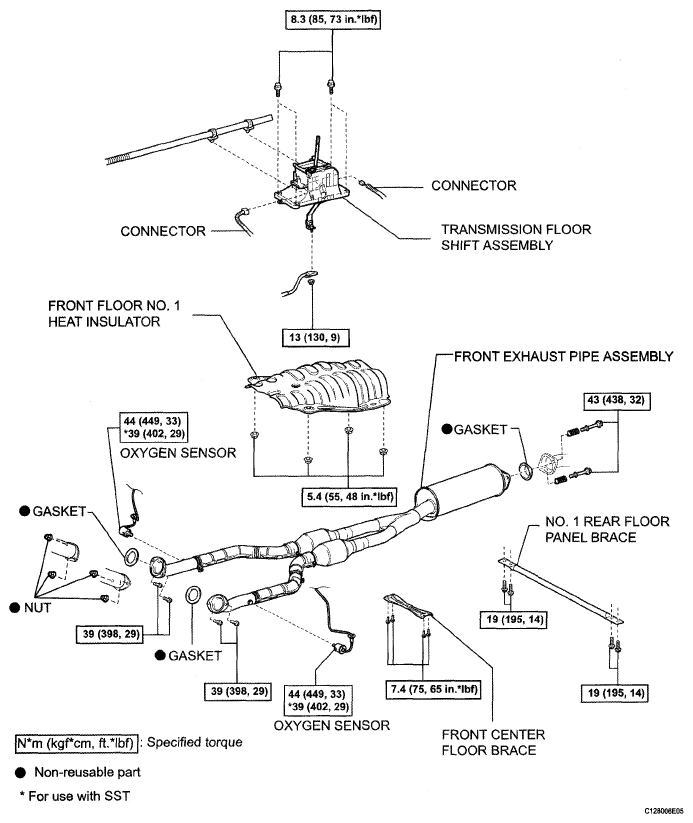

Fig 2: Identifying Shift Lever Assembly Replacement Components With Torque Specification (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Identifying Shift Lever Assembly Components (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
