Section 45 (Navigation): Multi-Display: Components
WARNING:
This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.

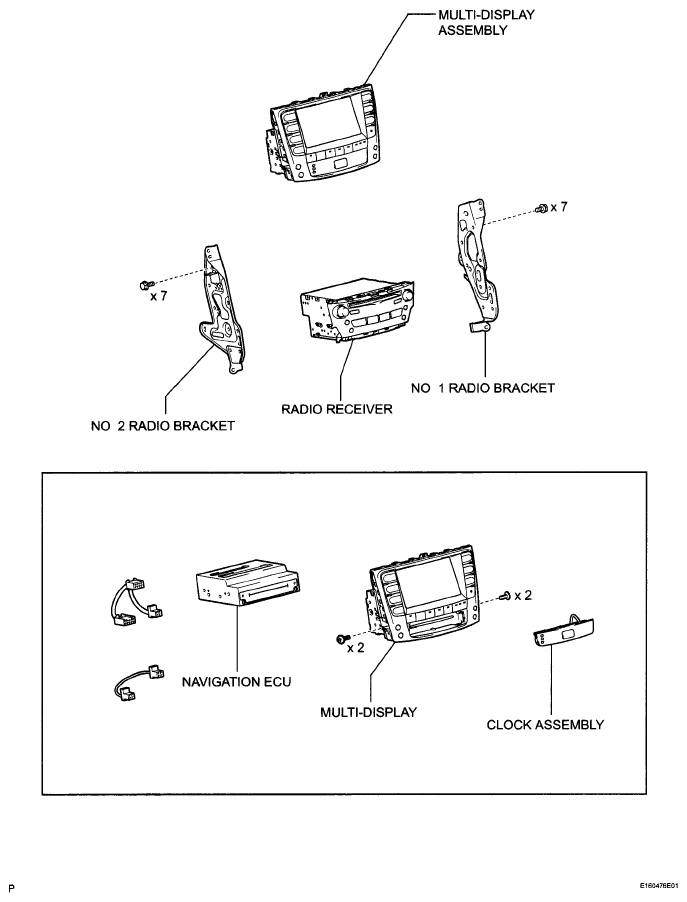

Fig 1: Identifying Multi-Display Components (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

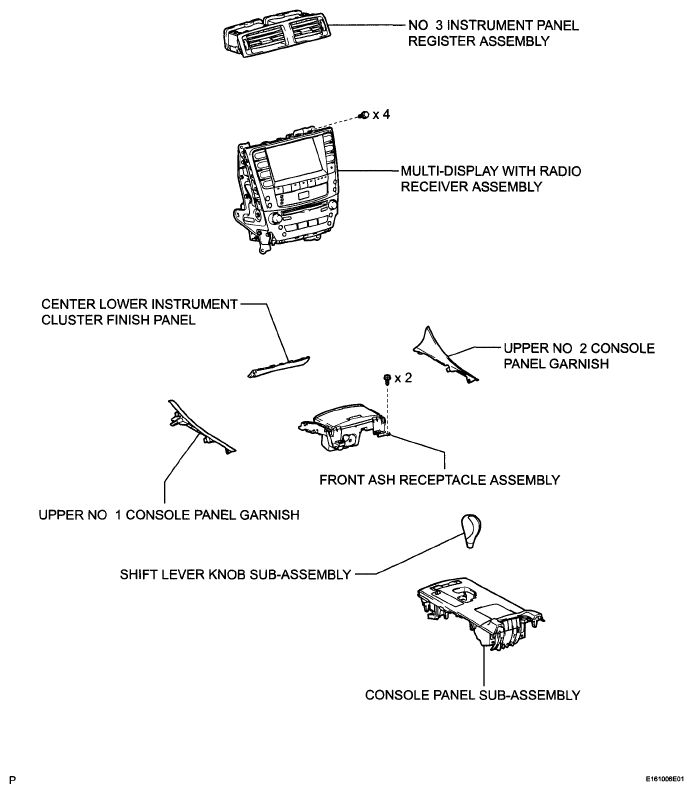

Fig 2: Identifying Multi-Display Components (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
