System Diagram

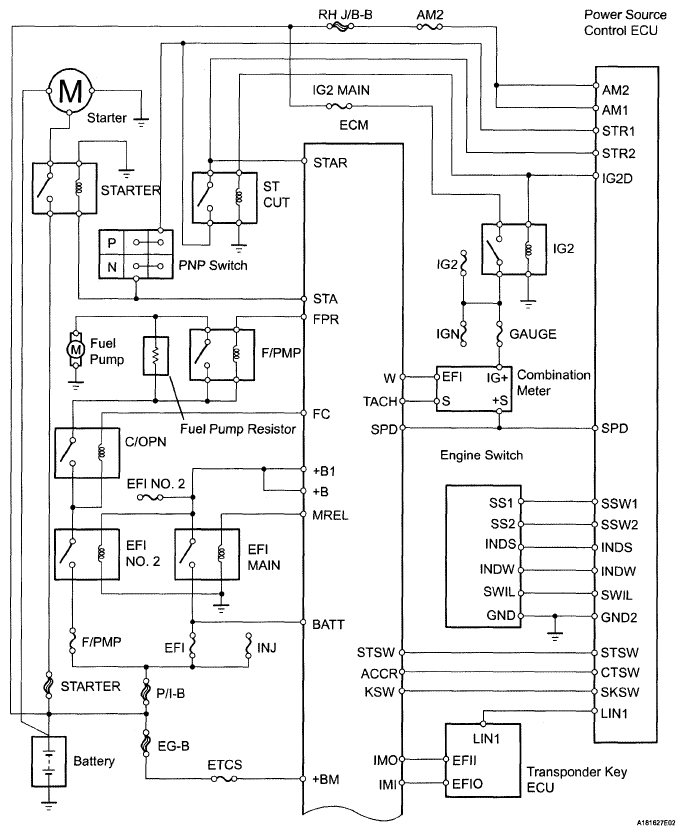

Fig 1: Engine Control System (2GR-FSE) Diagram (1 Of 5)
G05822465Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

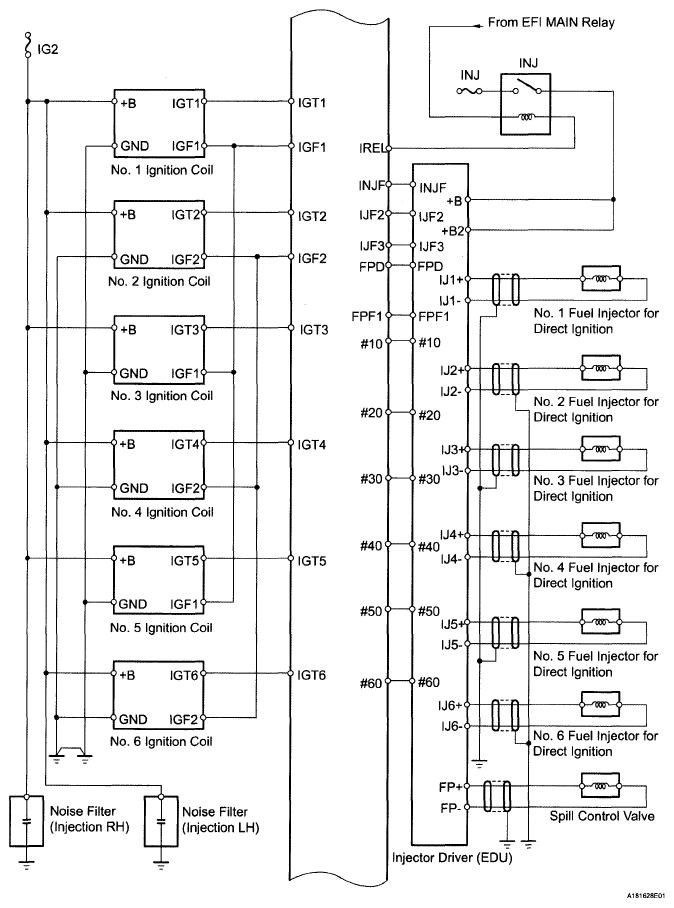

Fig 2: Engine Control System (2GR-FSE) Diagram (2 Of 5)
G05822466Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Engine Control System (2GR-FSE) Diagram (3 Of 5)
G05315872Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

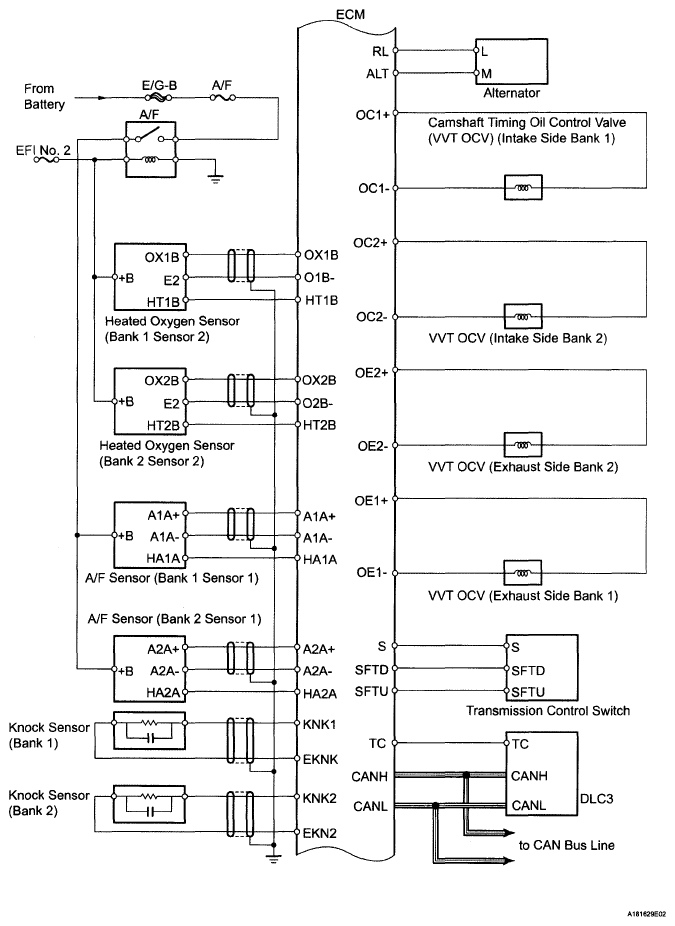

Fig 4: Engine Control System (2GR-FSE) Diagram (4 Of 5)
G05822468Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

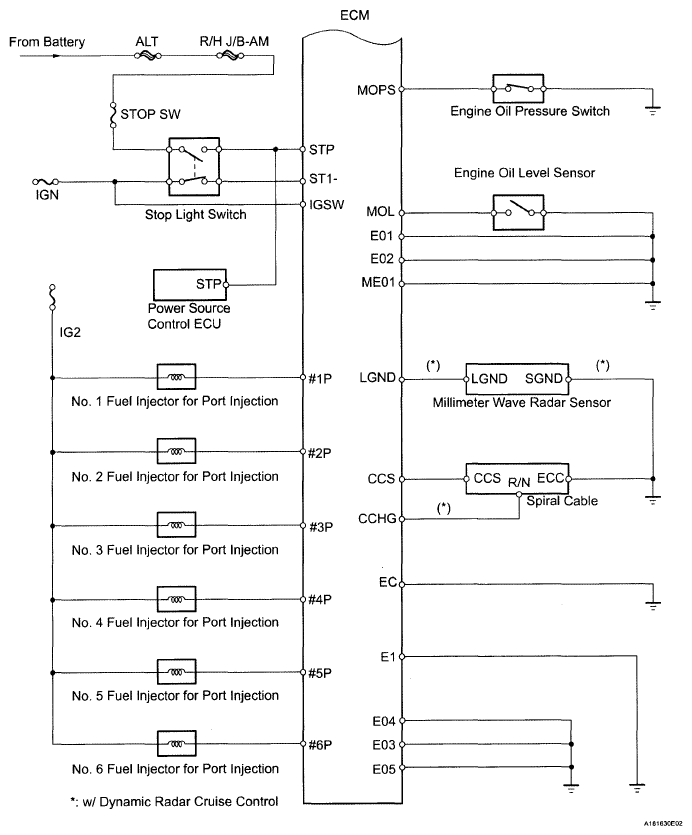

Fig 5: Engine Control System (2GR-FSE) Diagram (5 Of 5)
G05822469Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
