Integration Control And Panel: Components

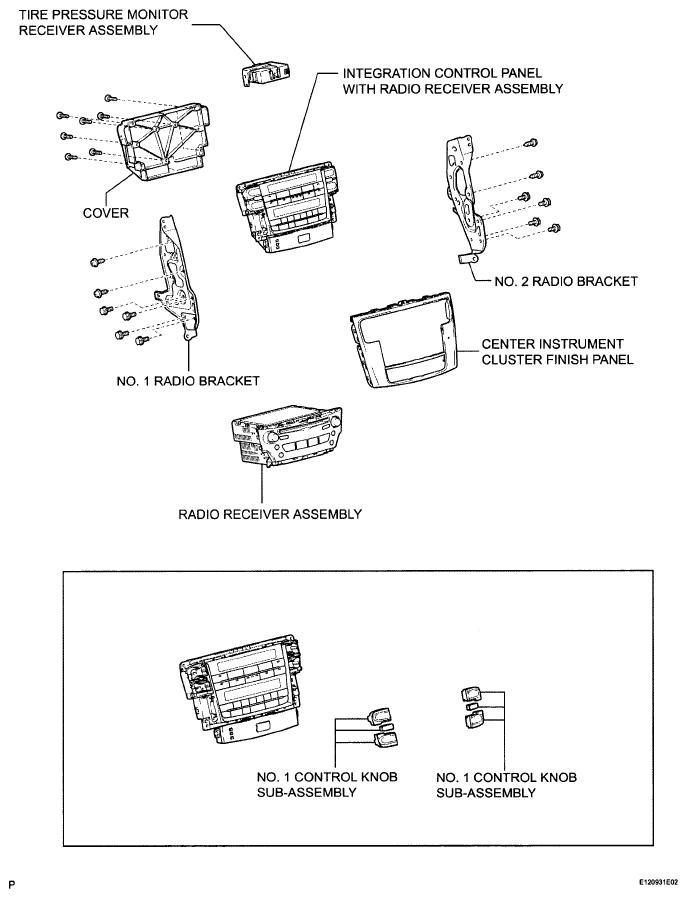

Fig 1: Identifying Integration Control And Panel Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

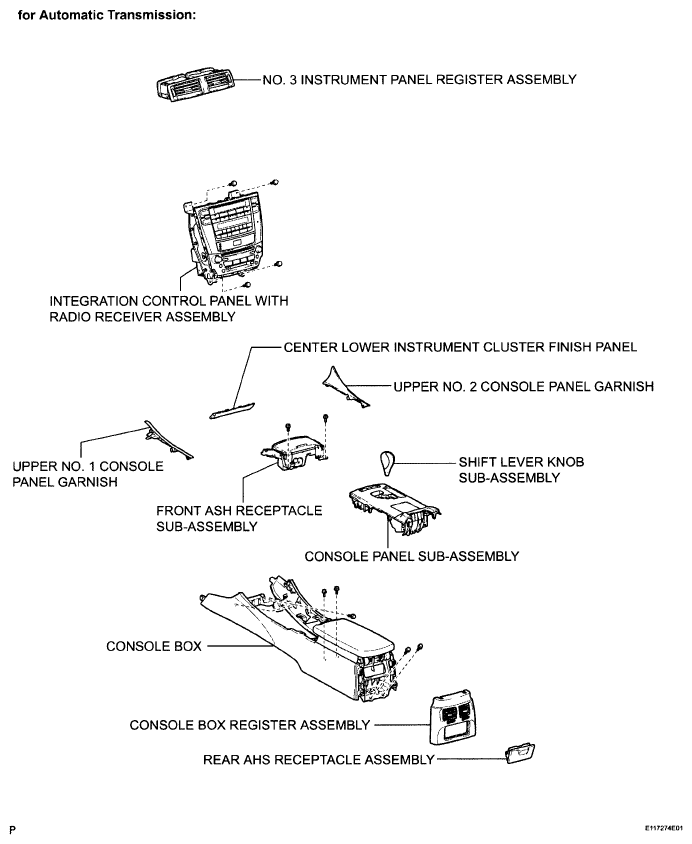

Fig 2: Identifying Integration Control And Panel Components (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

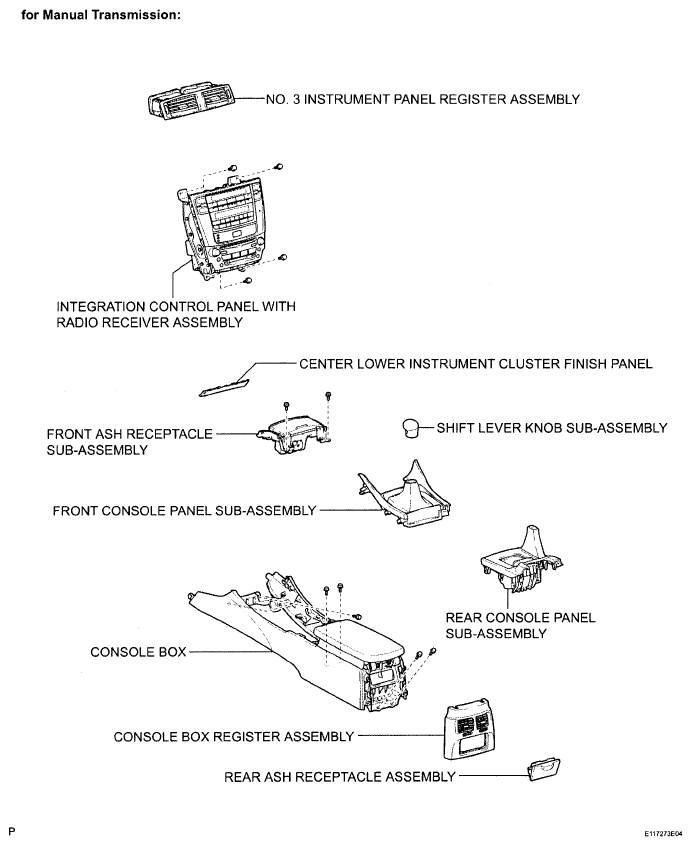

Fig 3: Identifying Integration Control And Panel Components (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
