Gateway ECU Power Source Circuit: Wiring Diagram

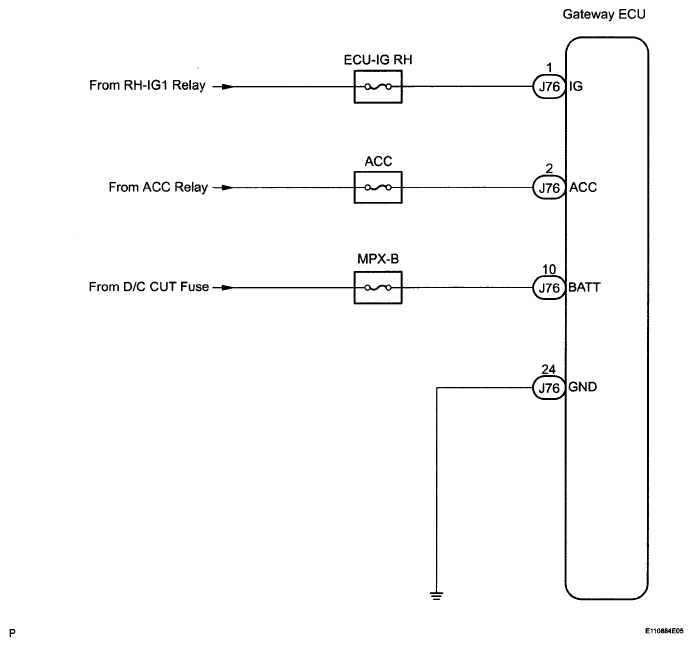

Fig 1: Gateway ECU - Wiring Diagram
G05828208Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
