Navigation Ecu: Components

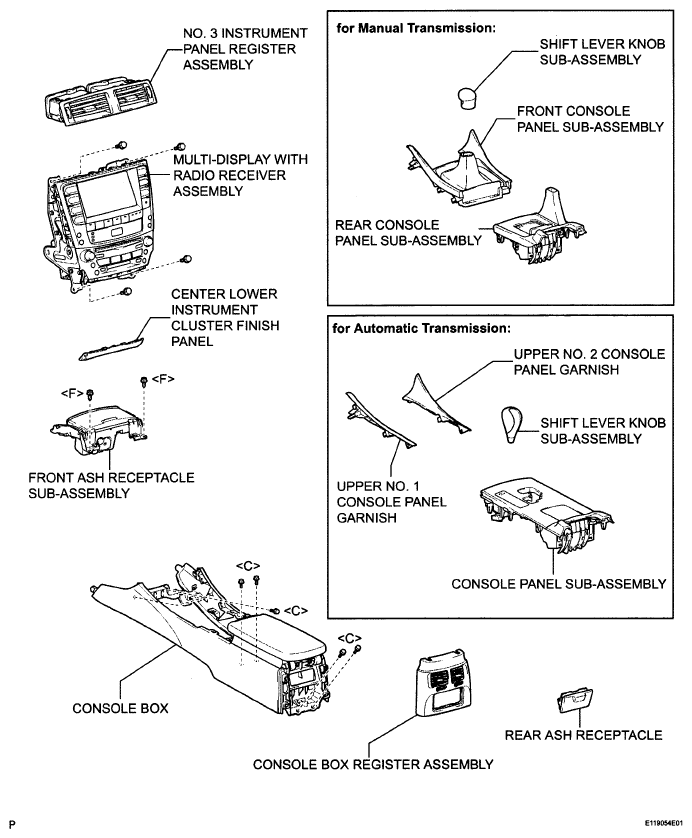

Fig 1: Identifying Navigation ECU Replacement Components (1 Of 2)
G05832705Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

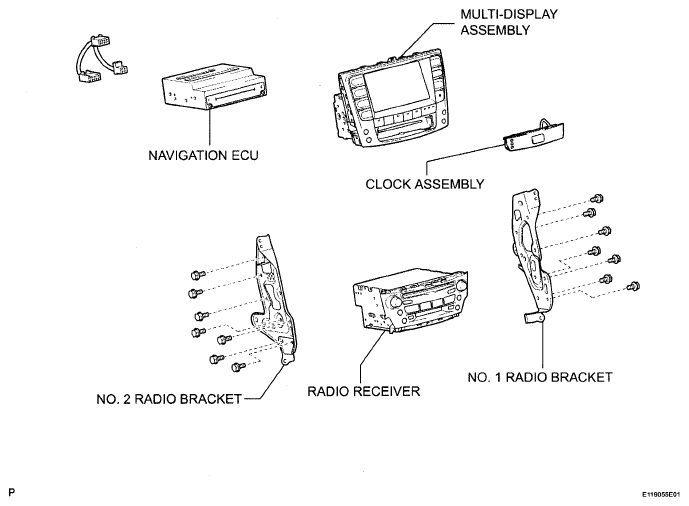

Fig 2: Identifying Navigation ECU Replacement Components (2 Of 2)
G05832706Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
