Inspection Procedure

  1. CHECK OPERATION OF SPEEDOMETER
    1. Drive the vehicle and check if the function of the speedometer in the combination meter is normal.

      OK:

      Actual vehicle speed and the speed indicated on the speedometer are the same.

      HINT:

      The vehicle speed sensor is functioning normally when the indication on the speedometer is normal.

    NG: COMBINATION METER SYSTEM

    OK: Go to next step

  2. INSPECT MULTI-DISPLAY
    1. Disconnect the multi-display connector J50.
    2. Measure voltage.
      1. Jack up either one of the drive wheels.
      2. Move the shift lever to the neutral position.
      3. Turn the engine switch on (IG).
        Fig 1: Identifying Multi-Display Connector J50
        G05832655Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      4. Measure the voltage between terminal SPD of the multi-display and body ground when the drive wheels are turned slowly.

        OK:

        Voltage pulses as shown in the illustration.

      Fig 2: Voltage Graph
      G05832656Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK: REPLACE MULTI-DISPLAY

    NG: Go to next step

  3. CHECK HARNESS AND CONNECTOR (COMBINATION METER - MULTI-DISPLAY)
    1. Disconnect the multi-display connector J50 and combination meter connector J34.
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      RESISTANCE REFERENCE

      Tester connection Condition Specified condition
      SPD-+ S Engine switch off Below 1 Ω

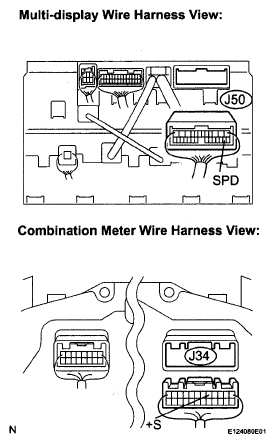

    3. Fig 3: Identifying Multi-Display Connector J50 And Combination Meter Connector J34
      G05832657Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  4. CHECK HARNESS AND CONNECTOR (COMBINATION METER - MULTI-DISPLAY)
    1. Disconnect the multi-display connector J50 and combination meter connector J34.
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      RESISTANCE REFERENCE

      Tester connection Condition Specified condition
      SPD - Body ground Engine switch off 10 kΩ or higher

      HINT:

      If the resistance between terminal SPD and body ground is less than 10 kΩ, there may be a short in a wire harness, connector, or an ECU that is connected to the SPD signal wire.

      Fig 4: Identifying Multi-Display Connector J50 And Combination Meter Connector J34
      G05832658Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR OR EACH ECU

    OK: REPLACE COMBINATION METER
