Ultrasonic Sensor: Components

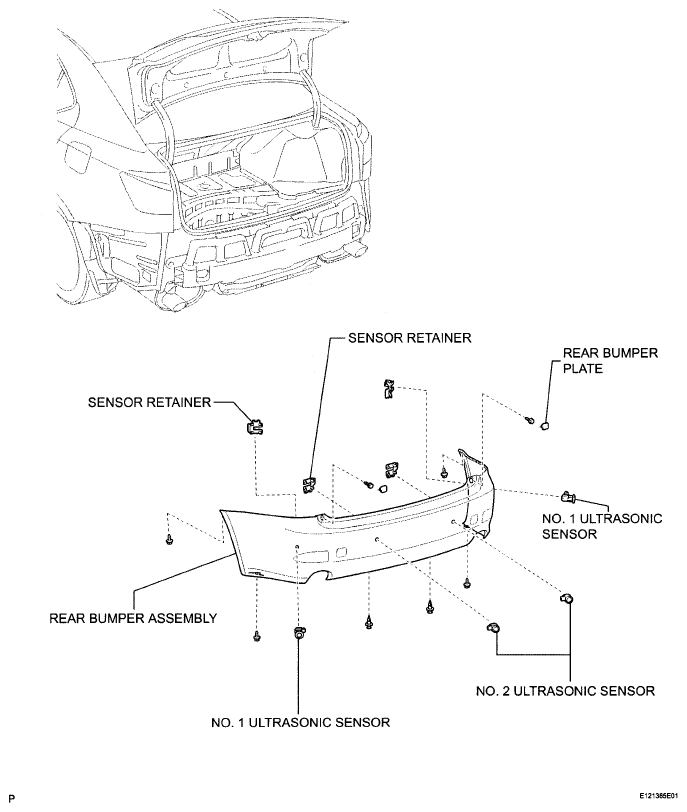

Fig 1: Identifying Ultrasonic Sensor Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

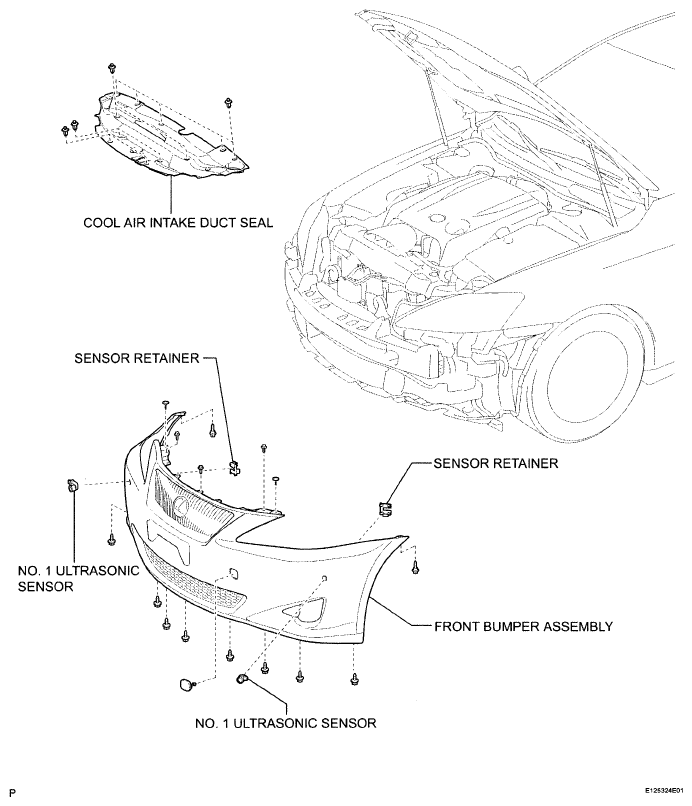

Fig 2: Identifying Ultrasonic Sensor Replacement Components (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

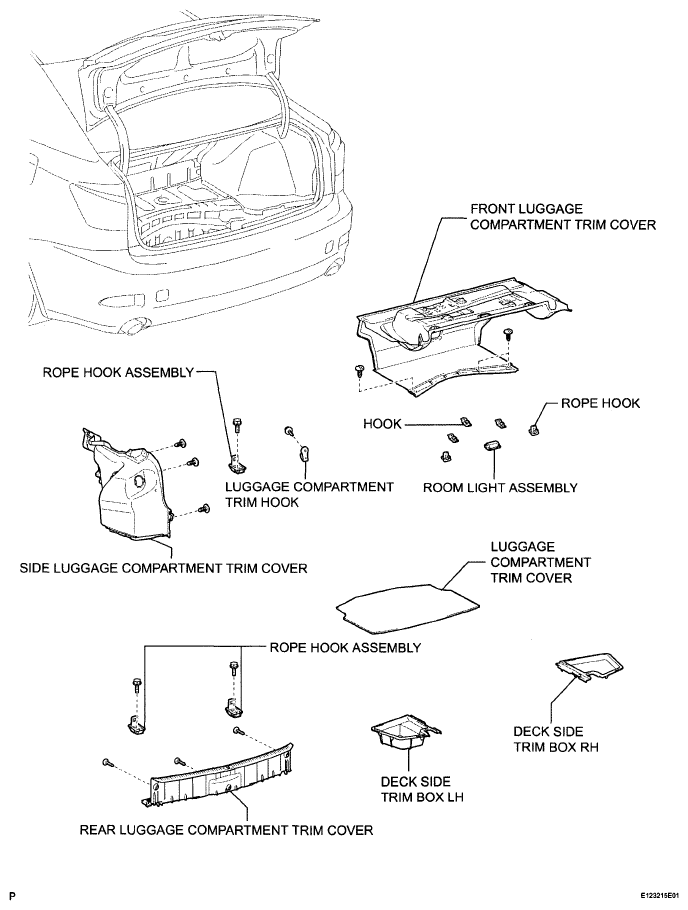

Fig 3: Identifying Ultrasonic Sensor Components (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
