Rear Sunshade Assembly: Components

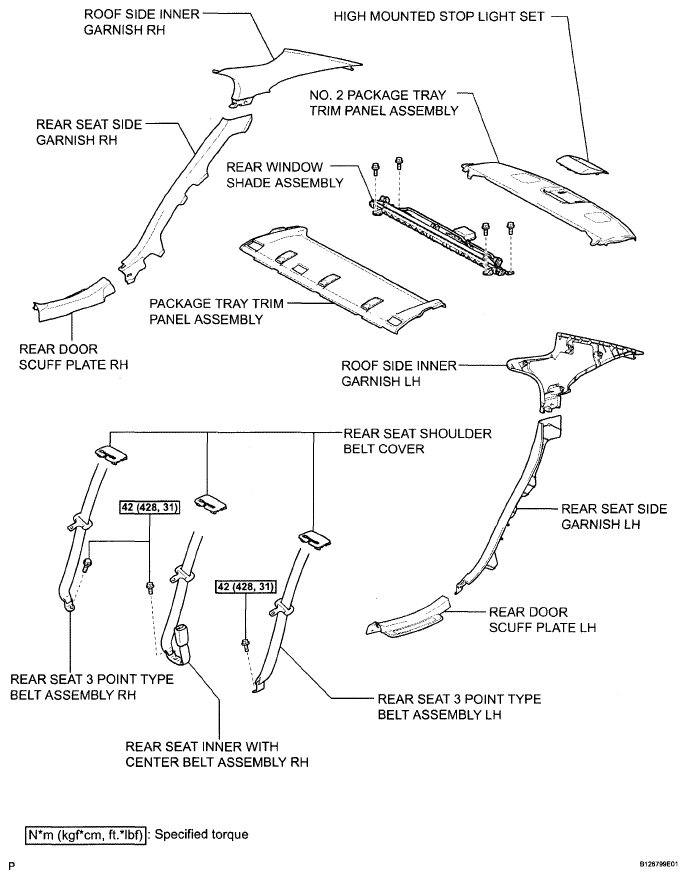

Fig 1: Identifying Rear Sunshade Assembly Replacement Components (1 Of 3) with Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Identifying Rear Sunshade Assembly Replacement Components (2 Of 3) with Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

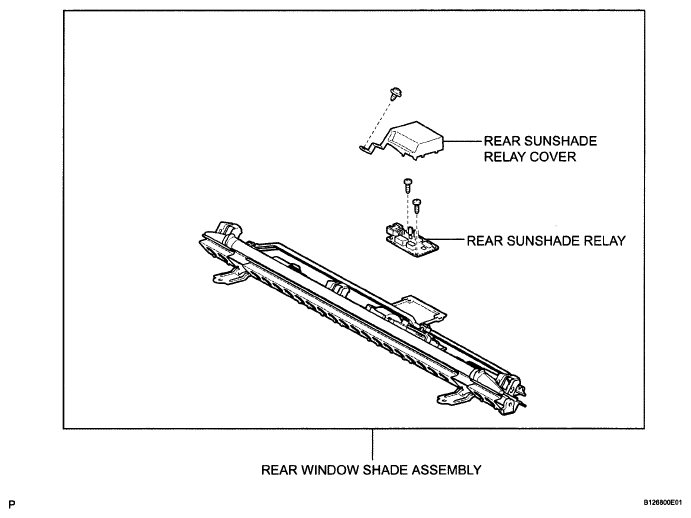

Fig 3: Identifying Rear Sunshade Assembly Components (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
