Roof Headlining: Installation

  1. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH
    1. Install the front door opening trim weatherstrip LH as shown in the illustration.
      Fig 1: Identifying Front Door Opening Trim Weatherstrip
      G05833763Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH
    1. Install the front door opening trim weatherstrip RH as shown in the illustration.
      Fig 2: Identifying Front Door Opening Trim Weatherstrip
      G05833764Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP LH
    1. Install the rear door opening trim weatherstrip LH as shown in the illustration.
      Fig 3: Identifying Rear Door Opening Trim Weatherstrip
      G05833765Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP RH
    1. Install the rear door opening trim weatherstrip RH as shown in the illustration.
      Fig 4: Identifying Rear Door Opening Trim Weatherstrip
      G05833766Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL NO. 1 ROOF WIRE (w/o Sliding Roof)
    1. Install the roof wire.

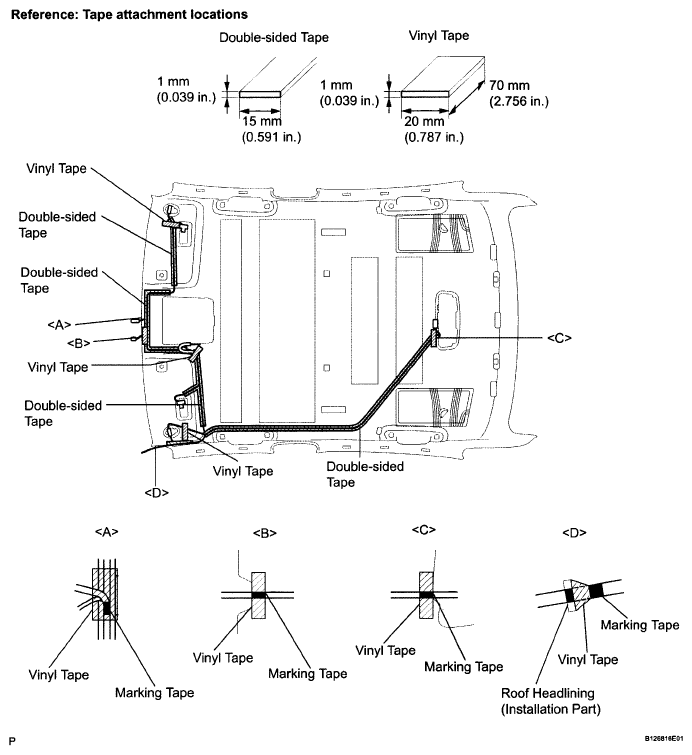

      Fig 5: Identifying No. 1 Roof Wire (W/O Sliding Roof) Location And Dimension
      G05833767Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the peeling paper from one side of double-sided tape.
      2. Attach double-sided tape to the marks on the roof headlining, as shown in the illustrations below above.
      3. Remove peeling paper from the other side of double-sided tape.
      4. Align the wire harness to double-sided tape. Also, align the marking tape areas of the wire harness to the marks on the roof headlining. Temporarily attach the wire harness to the roof headlining. Secure the wire harness to the roof headlining with vinyl tape.
        NOTE: Securely install the No. 1 roof wire. If the wire is not secure, noise will occur.

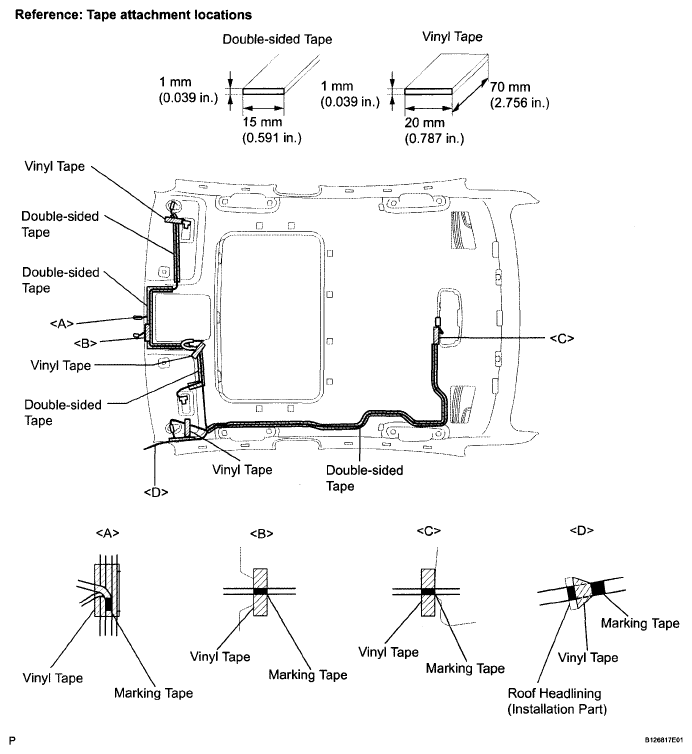

        5. Fig 6: Identifying No. 1 Roof Wire (W Sliding Roof) Location And Dimension
        G05833768Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL NO. 1 ROOF WIRE (w/ Sliding Roof)
    1. Install the roof wire.
      1. Remove the peeling paper from one side of double-sided tape.
      2. Attach double-sided tape to the marks on the roof headlining, as shown in the illustrations above.
      3. Remove peeling paper from the other side of double-sided tape.
      4. Align the wire harness to double-sided tape. Also, align the marking tape areas of the wire harness to the marks on the roof headlining. Temporarily attach the wire harness to the roof headlining. Secure the wire harness to the roof headlining with vinyl tape.
        NOTE: Securely install the No. 1 roof wire. If the wire is not secure, noise will occur.
  7. INSTALL VANITY LIGHT ASSEMBLY
    1. Engage the 3 claws and install the vanity light assembly.

      HINT:

      Use the same procedure to install the light on the other side.

      Fig 7: Identifying Vanity Light Assembly Claws
      G05016397Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL ROOF SILENCER PAD (w/o Sliding Roof)
    1. Align the markings on the roof headlining assembly with the roof silencer pads and install the pads using double-sided tape as shown in the illustration.
      Fig 8: Aligning Markings On Roof Headlining Assembly With Roof Silencer Pads
      G05833758Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL REAR SIDE RAIL SPACER (w/o Sliding Roof)
    1. Align the markings on the roof headlining assembly with the rear side rail spacer and install the spacers using double-sided tape as shown in the illustration.
      Fig 9: Aligning Markings On Roof Headlining Assembly With Rear Side Rail Spacer
      G05833759Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL ROOF HEADLINING PAD (w/o Sliding Roof)
    1. Align the markings on the roof headlining assembly with the roof headlining pad and install the pads using double-sided tape as shown in the illustration.
      Fig 10: Aligning Markings On Roof Headlining Assembly With Roof Headlining Pad
      G05755680Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. INSTALL REAR SIDE RAIL SPACER (w/ Sliding Roof)
    1. Align the markings on the roof headlining assembly with the rear side rail spacer and install the spacers using double-sided tape as shown in the illustration.
      Fig 11: Aligning Markings On Roof Headlining Assembly With Rear Side Rail Spacer
      G05833773Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. INSTALL ROOF HEADLINING ASSEMBLY (w/o Sliding Roof)
    1. Place the roof headlining in the vehicle from the front right door.
      Fig 12: Locating Roof Headlining
      G05833774Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the hook, 10 claws and 2 clips, and install the roof headlining assembly.
      Fig 13: Identifying Hook, Claws And Clips
      G05755656Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Connect the roof wire connector and engage each clamp.
    4. Connect each connector to the map light assembly.
      Fig 14: Identifying Roof Wire Connector And Clamp
      G05833752Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. INSTALL ROOF HEADLINING ASSEMBLY (w/ Sliding Roof)
    1. Place the roof headlining in the vehicle from the front right door.
      Fig 15: Identifying Roof Headlining
      G05755688Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the hook, 10 claws, 8 fasteners and 2 clips, and install the roof headlining assembly.

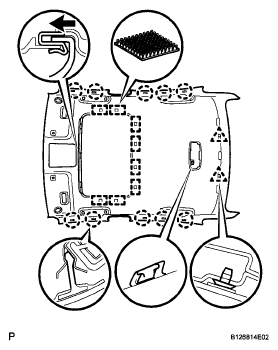

      Fig 16: Identifying Roof Headlining Assembly Hook, Claws And Fasteners
      G05755689Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Connect the roof wire connector and engage each clamp.
    4. Connect each connector to the map light assembly.
      Fig 17: Identifying Roof Wire Connector And Clamp
      G05833752Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. INSTALL VISOR HOLDER
    1. Set the claws of the visor holder as shown in the illustration
    2. Engage the claws and install the visor holder.

      HINT:

      Use the same procedure to install the holder on the other side.

      Fig 18: Identifying Visor Holder Claw
      G05254702Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. INSTALL VISOR ASSEMBLY LH
    1. Install the visor assembly LH with the 2 screws.
      2. Fig 19: Identifying Visor Assembly Screws
      G04946719Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. INSTALL VISOR ASSEMBLY RH
  17. INSTALL VISOR BRACKET COVER
    1. Engage the 4 claws and install the visor bracket cover.

      HINT:

      Use the same procedure to install the cover on the other side.

      Fig 20: Identifying Visor Bracket Cover Claws
      G04946746Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. INSTALL ASSIST GRIP SUB-ASSEMBLY
    1. Put an assist grip sub-assembly together as shown in the illustration.
    2. Install the assist grip sub-assembly.

      HINT:

      Use the same procedure for the other 3 assist grips.

      Fig 21: Identifying Assist Grip
      G05254696Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. INSTALL COAT HOOK
    1. Install the coat hook with the screw.

      HINT:

      Use the same procedure to install the hook on the other side.

      Fig 22: Identifying Coat Hook Screw
      G05755650Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. INSTALL SPOT LIGHT ASSEMBLY
    1. Connect the connector.
    2. Engage the 2 clips and install the spot light assembly.
  21. INSTALL MAP LIGHT ASSEMBLY (w/o Sliding Roof)
    1. Connect the connector.
      Fig 23: Identifying Map Light Assembly (W/O Sliding Roof) Connector And Claws
      G05833785Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

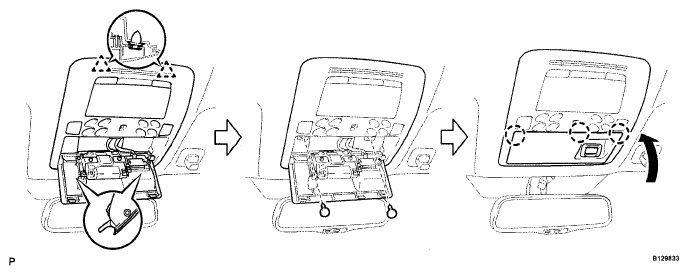

      Fig 24: Identifying Map Light Assembly (W/O Sliding Roof) Connector And Claws
      G05833786Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the 2 clips and install the map light assembly.
    3. Install the 2 screws.
    4. Engage the 3 claws and close the cover.
  22. INSTALL MAP LIGHT ASSEMBLY (w/ Sliding Roof)
    1. Connect the connector.

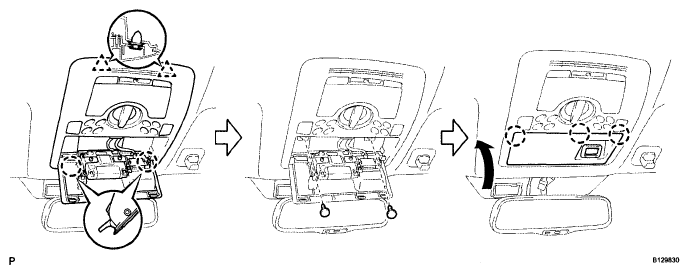

      Fig 25: Identifying Map Light Assembly (W Sliding Roof) Connector And Claws
      G05833787Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the 2 clips and install the map light assembly.
    3. Install the 2 screws.
    4. Engage the 3 claws and close the cover.
  23. INSTALL RAIN SENSOR TAPE  (See INSTALLATION )
  24. INSTALL RAIN SENSOR  (See INSTALLATION )
  25. INSTALL INNER REAR VIEW MIRROR STAY HOLDER COVER  (See INSTALLATION )
  26. INSTALL ROOF SIDE INNER GARNISH LH
    1. Engage the claw and 4 clips, and install the roof side garnish inner LH.
      2. Fig 26: Identifying Roof Side Inner Garnish LH Clips And Claw
      G05755649Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. INSTALL ROOF SIDE INNER GARNISH RH
  28. INSTALL REAR SEAT SIDE GARNISH LH
    1. Engage the 5 claws and install the rear seat side garnish LH.
      2. Fig 27: Identifying Rear Seat Side Garnish LH Claws
      G05755648Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. INSTALL REAR SEAT SIDE GARNISH RH
  30. INSTALL CENTER PILLAR GARNISH LH
    1. Engage the 2 claws and install the center pillar garnish LH.
    2. Install the 2 screws.
      3. Fig 28: Identifying Center Pillar Garnish LH Claws And Screw
      G05755698Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  31. INSTALL CENTER PILLAR GARNISH RH
  32. INSTALL LOWER CENTER PILLAR GARNISH LH
    1. Engage the 5 clips and 3 claws, and install the lower center pillar garnish LH.
      2. Fig 29: Identifying Lower Center Pillar Garnish LH Clips And Claws
      G05833791Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  33. INSTALL LOWER CENTER PILLAR GARNISH RH
  34. INSTALL FRONT SEAT OUTER BELT ASSEMBLY LH
    1. Install the front seat outer belt assembly LH with the bolt.

      Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

      2. Fig 30: Identifying Front Seat Outer Belt Assembly Bolt
      G05755643Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  35. INSTALL FRONT SEAT OUTER BELT ASSEMBLY RH
  36. INSTALL LAP BELT OUTER ANCHOR COVER
    1. Engage the 2 claws and install the lap belt outer anchor cover as shown in the illustration.

      HINT:

      Use the same procedure to install the cover on the other side.

      Fig 31: Identifying Lap Belt Outer Anchor Cover And Claws
      G05833793Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  37. INSTALL REAR DOOR SCUFF PLATE LH
    1. Engage the 2 clips.
      Fig 32: Identifying Rear Door Scuff Plate LH Clips
      G05755704Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the 5 claws and install the rear door scuff plate LH.
    Fig 33: Identifying Rear Door Scuff Plate LH Claws
    G05755641Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  38. INSTALL REAR DOOR SCUFF PLATE RH
  39. INSTALL TRANSMISSION FLOOR SHIFT ASSEMBLY (for 2GR-FSE)  (See INSTALLATION )
  40. INSTALL FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY (for 2GR-FSE)  (See INSTALLATION )
  41. INSTALL FRONT NO. 1 FLOOR HEAT INSULATOR (for 2GR-FSE)  (See INSTALLATION )
  42. INSTALL FRONT EXHAUST PIPE ASSEMBLY (for 2GR-FSE)  (See INSTALLATION )
  43. INSTALL OXYGEN SENSOR (for 2GR-FSE)  (See INSTALLATION )
  44. INSTALL FRONT CENTER FLOOR BRACE (for 2GR-FSE)  (See INSTALLATION )
  45. INSTALL REAR NO. 1 FLOOR PANEL BRACE (for 2GR-FSE)  (See INSTALLATION )
  46. INSTALL TRANSMISSION FLOOR SHIFT ASSEMBLY (for 4GR-FSE 2WD)  (See INSTALLATION )
  47. INSTALL FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY (for 4GR-FSE 2WD)  (See INSTALLATION )
  48. INSTALL FRONT NO. 1 FLOOR HEAT INSULATOR (for 4GR-FSE 2WD)  (See INSTALLATION )
  49. INSTALL FRONT EXHAUST PIPE ASSEMBLY (for 4GR-FSE 2WD)  (See INSTALLATION )
  50. INSTALL OXYGEN SENSOR (for 4GR-FSE 2WD)  (See INSTALLATION )
  51. INSTALL FRONT CENTER FLOOR BRACE (for 4GR-FSE 2WD)  (See INSTALLATION )
  52. INSTALL REAR NO. 1 FLOOR PANEL BRACE (for 4GR-FSE 2WD)  (See INSTALLATION )
  53. INSTALL TRANSMISSION FLOOR SHIFT ASSEMBLY (for 4GR-FSE 4WD)  (See INSTALLATION )
  54. INSTALL FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY (for 4GR-FSE 4WD)  (See INSTALLATION )
  55. INSTALL FRONT NO. 1 FLOOR HEAT INSULATOR (for 4GR-FSE 4WD)  (See INSTALLATION )
  56. INSTALL FRONT EXHAUST PIPE ASSEMBLY (for 4GR-FSE 4WD)  (See INSTALLATION )
  57. INSTALL OXYGEN SENSOR (for 4GR-FSE 4WD)  (See INSTALLATION )
  58. INSTALL FRONT CENTER FLOOR BRACE (for 4GR-FSE 4WD)  (See INSTALLATION )
  59. INSTALL REAR NO. 1 FLOOR PANEL BRACE (for 4GR-FSE 4WD)  (See INSTALLATION )
  60. INSTALL FLOOR SHIFT LEVER ASSEMBLY (for Manual Transmission)  (See INSTALLATION )
  61. INSTALL SHIFT LEVER CAP (for Manual Transmission)  (See INSTALLATION )
  62. INSTALL NO. 1 SHIFT AND SELECT LEVER BOOT (for Manual Transmission)  (See INSTALLATION )
  63. INSTALL INSTRUMENT PANEL STAY  (See INSTALLATION )
  64. INSTALL INSTRUMENT PANEL CLIP  (See INSTALLATION )
  65. INSTALL INSTRUMENT PANEL SAFETY PAD ASSEMBLY  (See INSTALLATION )
  66. CONNECT PASSENGER AIRBAG CONNECTOR  (See INSTALLATION )
  67. INSTALL NO. 2 CONSOLE BOX DUCT (for Manual Transmission)  (See INSTALLATION )
  68. INSTALL NO. 1 CONSOLE BOX DUCT (for Automatic Transmission)  (See INSTALLATION )
  69. INSTALL NO. 2 CONSOLE BOX DUCT (for Automatic Transmission)  (See INSTALLATION )
  70. INSTALL FRONT STEREO COMPONENT SPEAKER ASSEMBLY (w/ Front Center Speaker)  (See INSTALLATION )
  71. INSTALL NO. 3 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY  (See INSTALLATION )
  72. INSTALL NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY  (See INSTALLATION )
  73. INSTALL NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY  (See INSTALLATION )
  74. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY  (See INSTALLATION )
  75. INSTALL FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY  (See INSTALLATION )
  76. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY  (See INSTALLATION )
  77. INSTALL SIDE INSTRUMENT PANEL RH  (See INSTALLATION )
  78. INSTALL COMBINATION METER ASSEMBLY  (See INSTALLATION )
  79. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY  (See INSTALLATION )
  80. INSTALL DRIVER SIDE KNEE AIRBAG ASSEMBLY  (See INSTALLATION )
  81. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY  (See INSTALLATION )
  82. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY  (See INSTALLATION )
  83. INSTALL SIDE INSTRUMENT PANEL LH  (See INSTALLATION )
  84. INSTALL FRONT PILLAR GARNISH LH
    1. Install a new clip < A > on the front pillar garnish LH.
    2. Engage the claw and 2 clips, and install the front pillar garnish LH.
      3. Fig 34: Identifying Front Pillar Garnish Clips And Claws
      G05833796Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  85. INSTALL FRONT PILLAR GARNISH RH
  86. INSTALL FRONT DOOR OPENING TRIM COVER LH
    1. Engage the 4 claws and install the front door opening trim cover LH.
      2. Fig 35: Identifying Front Door Opening Trim Cover Claws
      G05833733Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  87. INSTALL FRONT DOOR OPENING TRIM COVER RH
  88. INSTALL FRONT DOOR SCUFF PLATE LH (w/o Illumination)
    1. Engage the 4 clips.
      Fig 36: Identifying Front Door Scuff Plate Clips
      G05755708Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the 7 claws, and install the front door scuff plate LH.
  89. INSTALL FRONT DOOR SCUFF PLATE RH (w/o Illumination)
  90. INSTALL FRONT DOOR SCUFF PLATE LH (w/ Illumination)
    1. Connect the connector.
      Fig 37: Identifying Front Door Scuff Plate LH Claws
      G05755636Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the 4 clips.
      Fig 38: Identifying Front Door Scuff Plate Clips
      G05755708Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Engage the 7 claws, and install the front door scuff plate LH.
    Fig 39: Identifying Front Door Scuff Plate Claws
    G05755636Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  91. INSTALL FRONT DOOR SCUFF PLATE RH (w/ Illumination)
  92. INSTALL TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY  (See INSTALLATION )
  93. INSTALL STEERING COLUMN COVER (for Manual Tilt and Telescopic)  (See INSTALLATION )
  94. INSTALL STEERING COLUMN COVER (for Power Tilt and Power Telescopic)  (See INSTALLATION )
  95. ADJUST SPIRAL CABLE SUB-ASSEMBLY  (See INSTALLATION )
  96. INSTALL STEERING WHEEL ASSEMBLY  (See INSTALLATION )
  97. INSTALL STEERING PAD  (See INSTALLATION )
  98. INSTALL LOWER NO. 3 STEERING WHEEL COVER  (See INSTALLATION )
  99. INSTALL LOWER NO. 2 STEERING WHEEL COVER  (See INSTALLATION )
  100. INSTALL INTEGRATION CONTROL PANEL WITH RADIO RECEIVER ASSEMBLY (w/o Navigation System)  (See INSTALLATION )
  101. INSTALL MULTI-DISPLAY WITH RADIO RECEIVER ASSEMBLY (w/ Navigation System)  (See INSTALLATION )
  102. INSTALL CENTER LOWER INSTRUMENT CLUSTER FINISH PANEL  (See INSTALLATION )
  103. INSTALL NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY  (See INSTALLATION )
  104. INSTALL CONSOLE BOX  (See INSTALLATION )
  105. INSTALL CONSOLE BOX REGISTER ASSEMBLY  (See INSTALLATION )
  106. INSTALL FRONT ASH RECEPTACLE SUB-ASSEMBLY  (See INSTALLATION )
  107. INSTALL FRONT CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission)  (See INSTALLATION )
  108. INSTALL REAR CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission)  (See INSTALLATION )
  109. INSTALL CONSOLE PANEL SUB-ASSEMBLY (for Automatic Transmission)  (See INSTALLATION )
  110. INSTALL UPPER NO. 2 CONSOLE PANEL GARNISH (for Automatic Transmission)  (See INSTALLATION )
  111. INSTALL UPPER NO. 1 CONSOLE PANEL GARNISH (for Automatic Transmission)  (See INSTALLATION )
  112. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transmission)
  113. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transmission)
  114. INSTALL FRONT SEAT ASSEMBLY LH (for Power Seat)  (See INSTALLATION )
  115. INSTALL REAR INNER SEAT TRACK COVER LH (for Power Seat)
  116. INSTALL REAR OUTER SEAT TRACK COVER LH (for Power Seat)
  117. INSTALL FRONT INNER SEAT TRACK BRACKET COVER LH (for Power Seat)
  118. INSTALL FRONT OUTER SEAT TRACK BRACKET COVER LH (for Power Seat)
  119. INSTALL FRONT SEAT ASSEMBLY RH (for Power Seat)
  120. INSTALL REAR INNER SEAT TRACK COVER RH (for Power Seat)
  121. INSTALL REAR OUTER SEAT TRACK COVER RH (for Power Seat)
  122. INSTALL FRONT INNER SEAT TRACK BRACKET COVER RH (for Power Seat)
  123. INSTALL FRONT OUTER SEAT TRACK BRACKET COVER RH (for Power Seat)
  124. INSTALL FRONT SEAT HEADREST ASSEMBLY (for Power Seat)
  125. INSTALL FRONT SEAT ASSEMBLY LH (for Manual Seat)  (See INSTALLATION )
  126. INSTALL REAR INNER SEAT TRACK COVER LH (for Manual Seat)  (See INSTALLATION )
  127. INSTALL REAR OUTER SEAT TRACK COVER LH (for Manual Seat)  (See INSTALLATION )
  128. INSTALL FRONT OUTER SEAT TRACK BRACKET COVER LH (for Manual Seat)  (See INSTALLATION )
  129. INSTALL FRONT INNER SEAT TRACK BRACKET COVER LH (for Manual Seat)  (See INSTALLATION )
  130. INSTALL FRONT SEAT ASSEMBLY RH (for Manual Seat)
  131. INSTALL REAR INNER SEAT TRACK COVER RH (for Manual Seat)
  132. INSTALL REAR OUTER SEAT TRACK COVER RH (for Manual Seat)
  133. INSTALL FRONT OUTER SEAT TRACK BRACKET COVER RH (for Manual Seat)
  134. INSTALL FRONT INNER SEAT TRACK BRACKET COVER RH (for Manual Seat)
  135. INSTALL FRONT SEAT HEADREST ASSEMBLY (for Manual Seat)
  136. INSTALL REAR SEATBACK ASSEMBLY  (See INSTALLATION )
  137. INSTALL REAR CENTER SEAT HEADREST ASSEMBLY
  138. INSTALL REAR SEAT HEADREST ASSEMBLY
  139. INSTALL REAR SEAT CUSHION ASSEMBLY  (See INSTALLATION )
  140. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  141. PERFORM INITIALIZATION
    NOTE: Some systems need initialization after reconnecting the cable to the negative battery terminal (See INITIALIZATION ).
  142. CHECK SRS WARNING LIGHT

    (See DIAGNOSIS SYSTEM )

  143. CHECK FOR EXHAUST GAS LEAKS

    If exhaust gas is leaking, tighten the related parts to stop the leak. Replace damaged parts as necessary.

  144. INSPECT FRONT SEAT ASSEMBLY (for Power Seat)  (See INSTALLATION )
  145. INSPECT SLIDE ADJUSTER LOCK (for Manual Seat)
  146. ADJUST SHIFT LEVER POSITION (for 2GR-FSE)  (See ADJUSTMENT )
  147. INSPECT SHIFT LEVER POSITION (for 2GR-FSE)  (See ADJUSTMENT )
  148. ADJUST SHIFT LEVER POSITION (for 4GR-FSE 2WD)  (See ADJUSTMENT )
  149. INSPECT SHIFT LEVER POSITION (for 4GR-FSE 2WD)  (See ADJUSTMENT )
  150. ADJUST SHIFT LEVER POSITION (for 4GR-FSE 4WD)  (See ADJUSTMENT )
  151. INSPECT SHIFT LEVER POSITION (for 4GR-FSE 4WD)  (See ADJUSTMENT )
About FixVault
