Engine Switch: Components

Fig 1: Identifying Engine Switch Replacement Components (1 Of 2)
G05829251Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

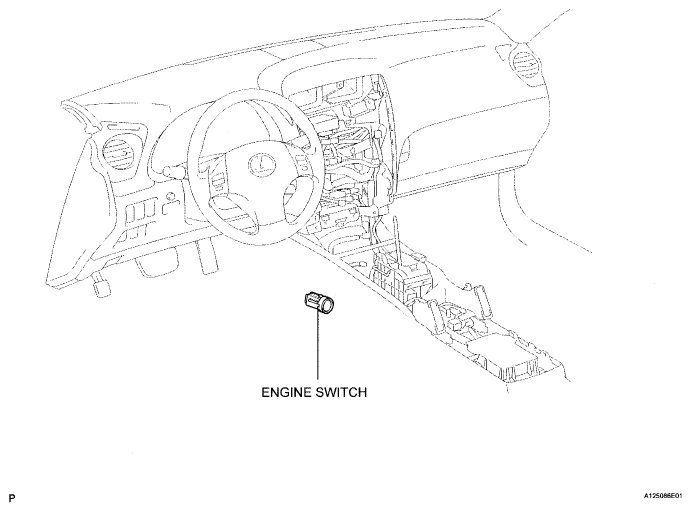

Fig 2: Identifying Engine Switch Replacement Components (2 Of 2)
G05829252Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
