Fuel Pressure Pulsation Damper: Components

Fig 1: Identifying Fuel Pressure Pulsation Damper Replacement Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

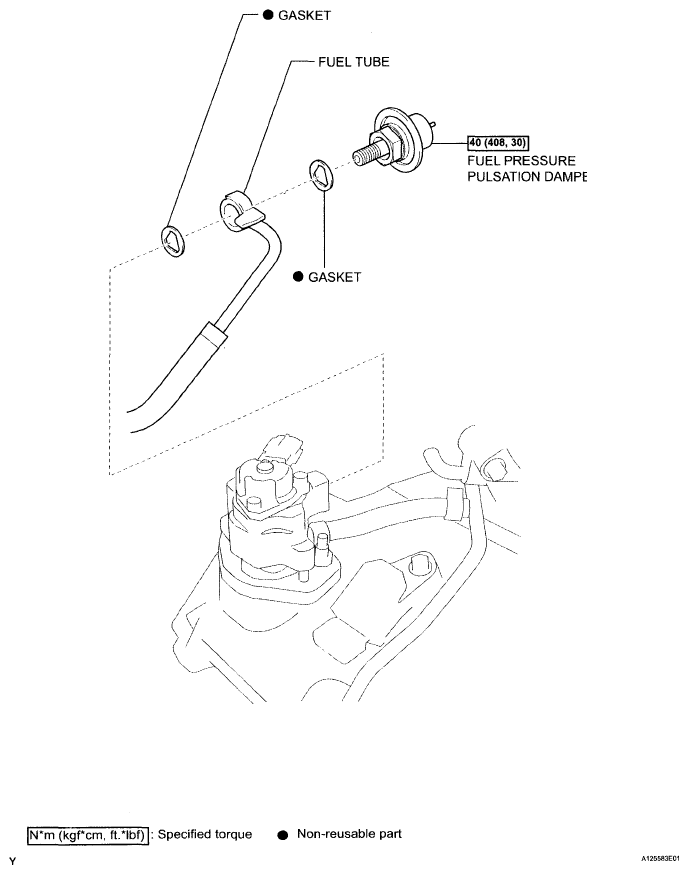

Fig 2: Fuel Pressure Pulsation Damper Replacement Components (2 Of 2) with Torque Specifications
