System Diagram

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.
  1. EMISSION CONTROL SYSTEM DIAGRAM

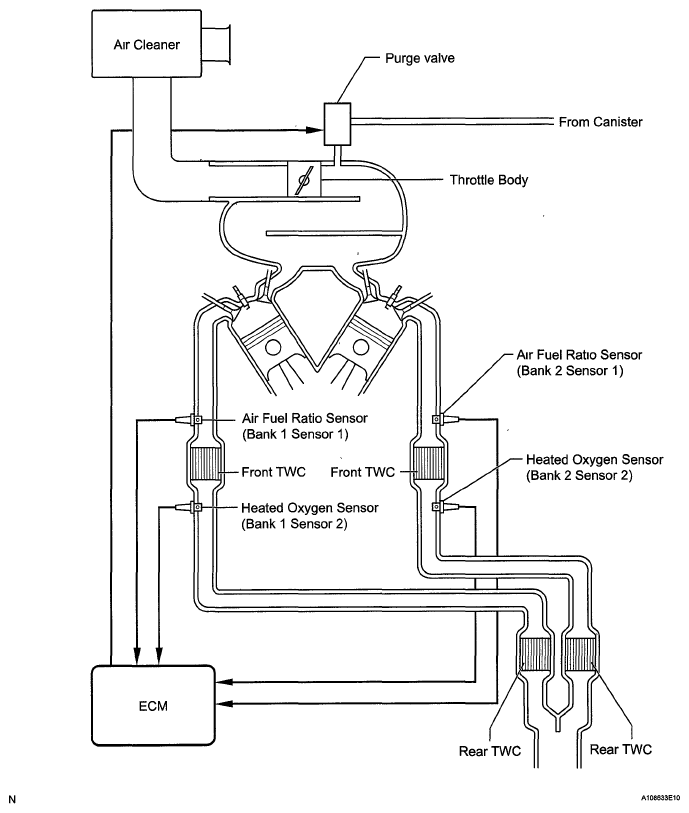

    Fig 1: Emission Control System Diagram
    G05750173Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. EVAP CONTROL SYSTEM DIAGRAM

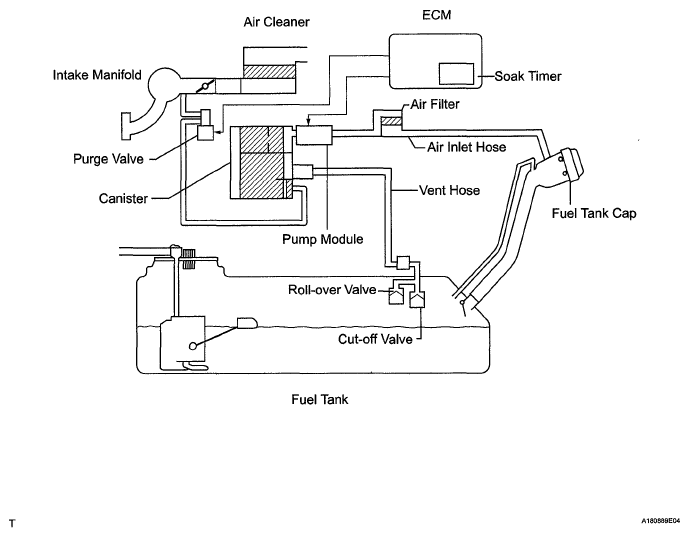

    Fig 2: EVAP Control System Diagram (1 Of 2)
    G05750174Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

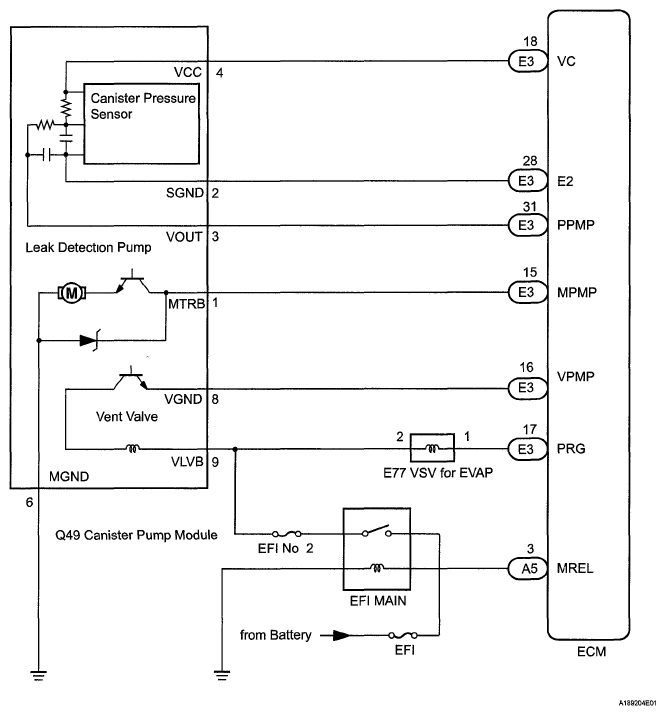

    Fig 3: EVAP Control System Diagram (2 Of 2)
    G05750175Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
