Air Conditioning Unit: Components

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.

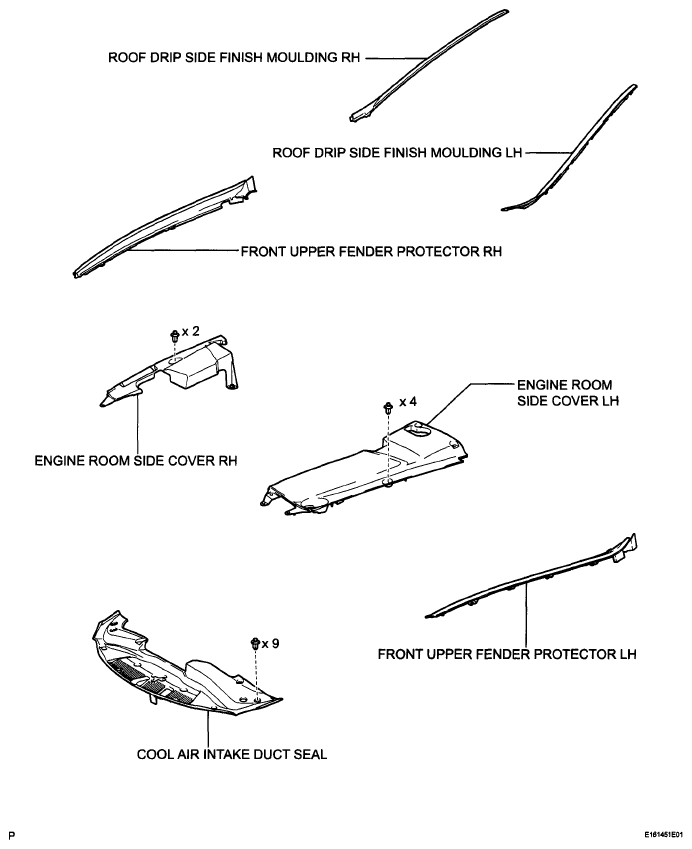

Fig 1: Identifying Air Conditioning Unit Replacement Components (1 Of 12)

G05756273

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

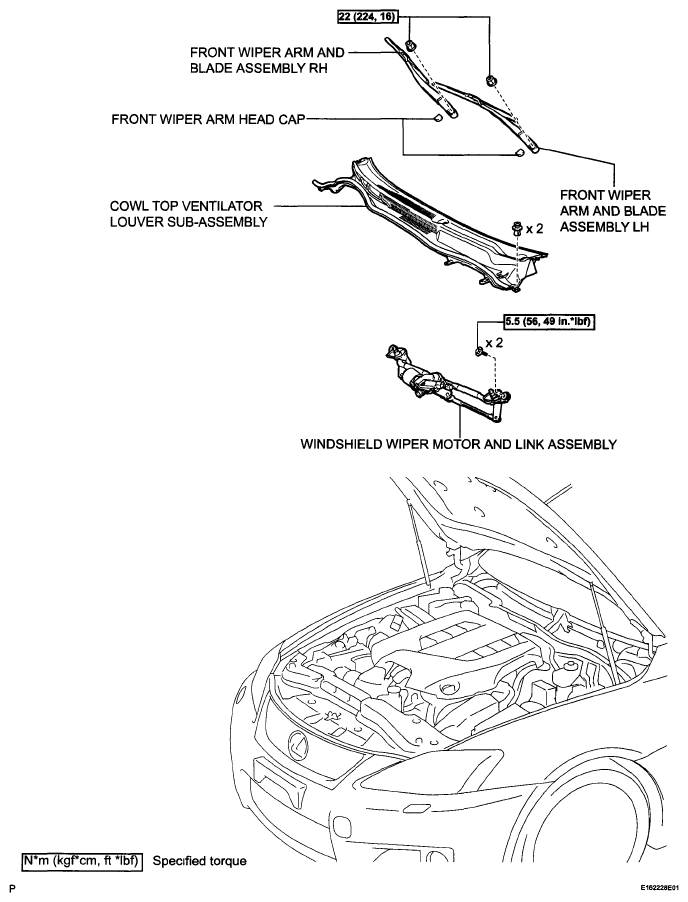

Fig 2: Front Evaporator Temperature Sensor Replacement Components With Torque Specifications (2 Of 12)

G05755322

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Identifying Air Conditioning Unit Replacement Components (3 Of 12)

G05755883

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Identifying Air Conditioning Unit Replacement Components With Torque Specifications (4 Of 12)

G05753469

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Identifying Air Conditioning Unit Replacement Components With Torque Specification (5 Of 12)

G05753776

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Identifying Air Conditioning Unit Replacement Components With Torque Specification (6 Of 12)

G05753777

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Identifying Air Conditioning Unit Replacement Components (7 Of 12) With Torque Specifications

G05755887

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 8: Identifying Air Conditioning Unit Replacement Components With Torque Specification (8 Of 12)

G05753023

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

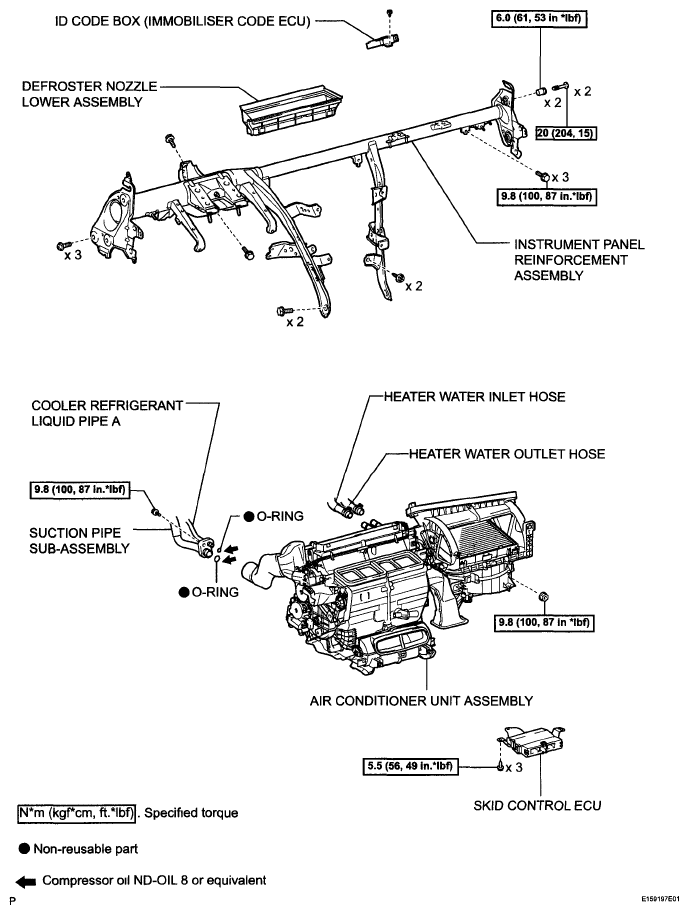

Fig 9: Air Conditioning Unit Components With Torque Specifications (9 Of 12)

G05755329

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

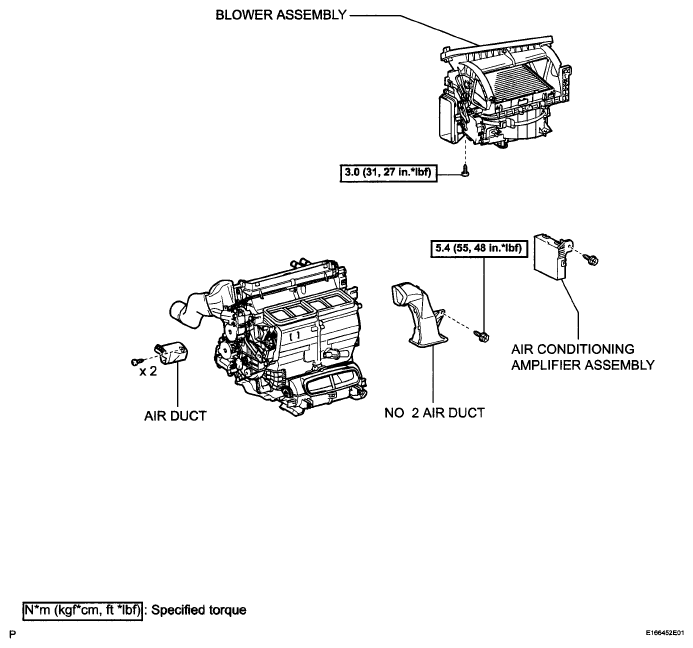

Fig 10: Air Conditioning Unit Components With Torque Specifications (10 Of 12)

G05755330

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

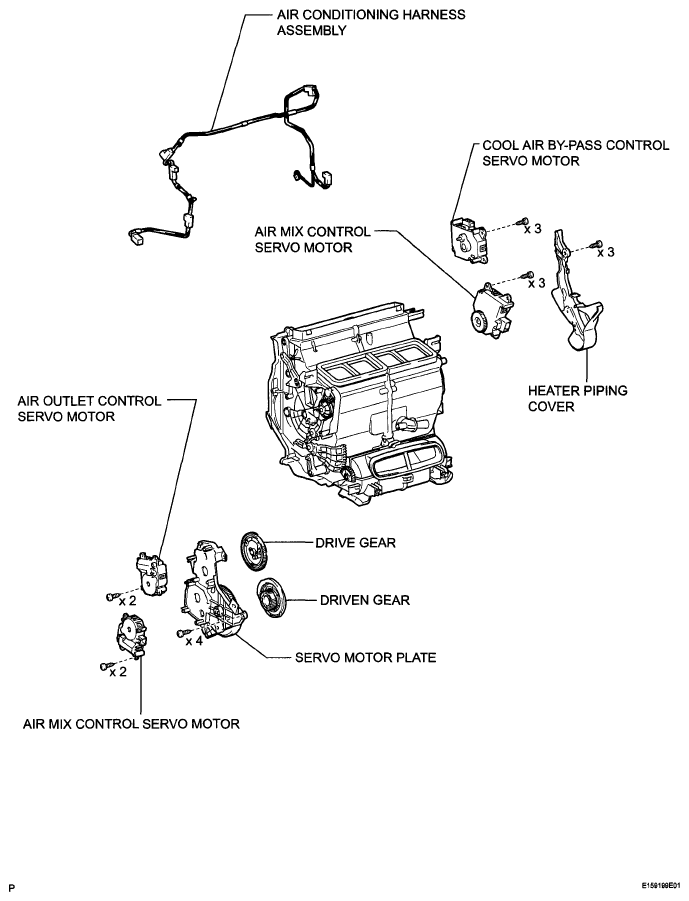

Fig 11: Identifying Air Conditioning Unit Components (11 Of 12)

G05755331

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

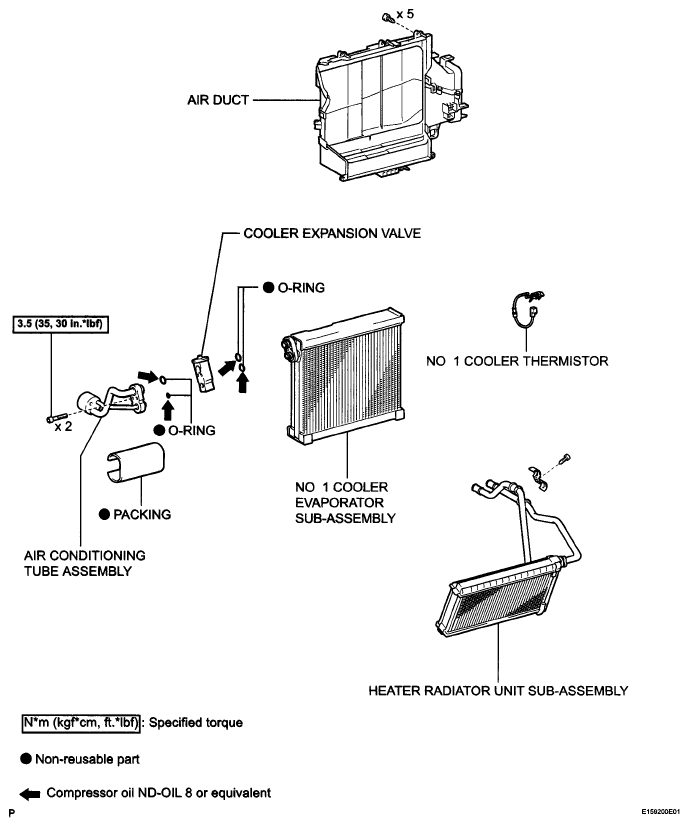

Fig 12: Front Evaporator Temperature Sensor Replacement Components With Torque Specifications (12 Of 12)

G05755332

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
