Blower Unit: Components

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Blower Unit Replacement Components (1 Of 10)

G05756273

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Identifying Blower Unit Replacement Components With Torque Specifications (2 Of 10)

G05755383

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Identifying Blower Unit Replacement Components (3 Of 10)

G05755883

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Identifying Blower Unit Replacement Components With Torque Specifications (4 Of 10)

G05753469

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Identifying Blower Unit Replacement Components With Torque Specifications (5 Of 10)

G05753776

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Identifying Blower Unit Replacement Components With Torque Specifications (6 Of 10)

G05753777

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Identifying Blower Unit Replacement Components With Torque Specifications (7 Of 10)

G05755887

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 8: Identifying Blower Unit Replacement Components With Torque Specifications (8 Of 10)

G05753023

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Air Conditioning Unit Components With Torque Specifications (9 Of 12)

G05755329

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

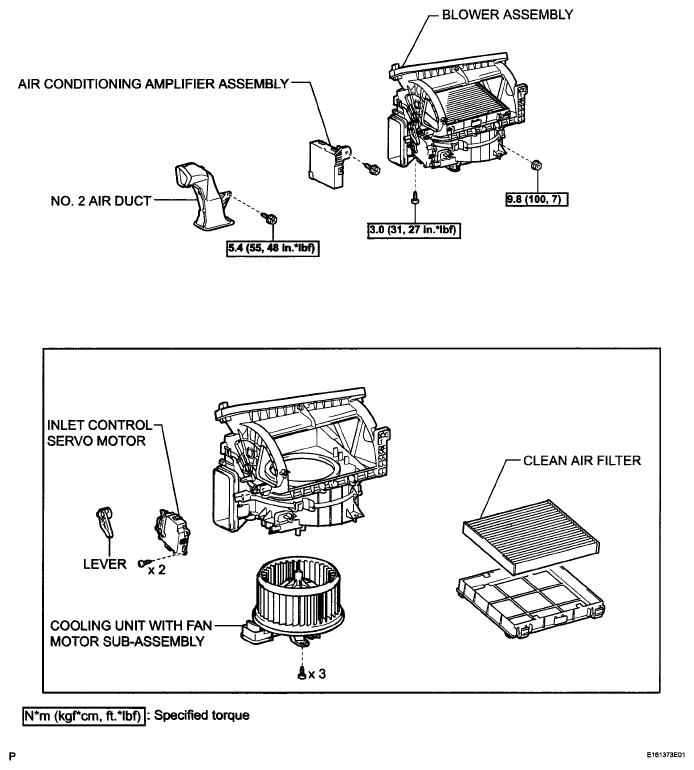

Fig 10: Blower Unit Components With Torque Specifications (10 Of 10)

G05755391

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
